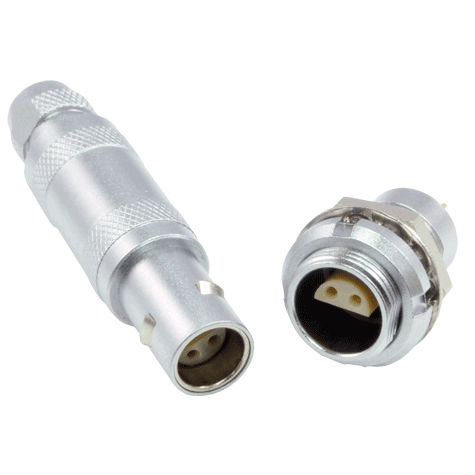

Data connector S series
electrical power supplycircularpush-pull

data connector
data connector
Add to favorites
Compare this product


Characteristics

Type
data, electrical power supply
Shape
circular
Connection type
push-pull
Material
metal
Product applications
for medical devices
Domain
for medical applications

Description

Benefits / Features 1. Push-Pull self-latching 2. Quick and easy mating and de-mating 3. Elastic claw locking (half-moon) and insert polarizations fitted with male and female contacts 4. 1 Size (0S) 5. Electrical Safety (touch & scoop proof) 6. 1 Key options 7. IP50 Specification 1. 2 to 6 pin 2. Solder & print contacts 3. Temperature range: -55°C to 250°C 4. For cable ø 1.3 to 6.2 mm 5. Current rating: 2.5 to 10A 6. Dielectric withstanding voltage: 0.9 to 1.1 kV rms 7. Insulation resistance: 10¹²Ω 8. Durability: >5,000 cycles 9. Shielding: >75dB at 10Mhz; >40dB at 1Ghz Product Environmental Compliance RoHS Compliant Applcation/ Target Market Push-Pull circular connectors product application are often preferred in Motors, Power, Electronics, Mechanical, Medical Equipment, MRT, Automobiles, Electric Vehicles, Communication Equipment, Military Applications, etc. Other 2 1. ISO 13485 2. UL 94 V-0 (PEEK)
