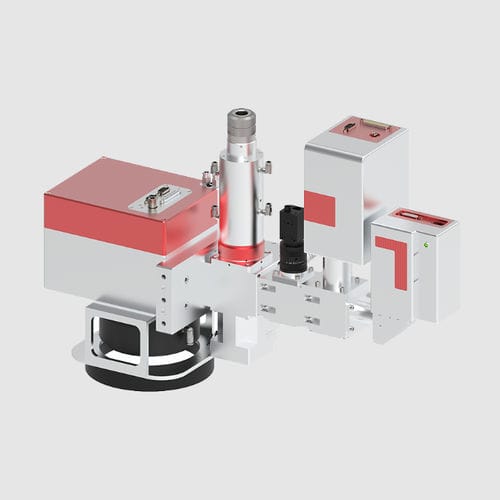

Laser welding head high-precisionclosedhigh-power
Add to favorites
Compare this product
Characteristics
- Technique
- laser
- Other characteristics
- high-precision, closed, high-power, intelligent
Description
Product description
The Intelligent Welding Head is a high-power galvo welding head developed by JPT, fitted with high-precision motors and precision optical components to support up to 8,000 W. The galvo integrates multiple alarm and monitoring functions for real-time status feedback and safe operation. It is compatible with JPT core welding modules, including the Power Monitoring & Compensation Module, OCT Penetration Depth Detection Module and WPD In-Process Monitoring Module, enabling intelligent full-process control and consistent weld quality.
Product advantages
Applications
Technical specifications
Features / specifications summary
The Intelligent Welding Head is a high-power galvo welding head developed by JPT, fitted with high-precision motors and precision optical components to support up to 8,000 W. The galvo integrates multiple alarm and monitoring functions for real-time status feedback and safe operation. It is compatible with JPT core welding modules, including the Power Monitoring & Compensation Module, OCT Penetration Depth Detection Module and WPD In-Process Monitoring Module, enabling intelligent full-process control and consistent weld quality.
Product advantages
- Closed-loop galvo control with continuous, real-time monitoring of position and status
- Built-in multi-level alarms: power anomaly, communication error, temperature warning and galvo position deviation
- Modular compatibility with JPT core modules for integrated monitoring, compensation and vision-guided positioning
- Engineered for high-power laser welding applications where stability and traceability are required
Applications
- Post-weld inspection of soft battery sampling terminals
- Post-weld inspection of power battery tabs
- Post-weld inspection of power battery connectors
- Post-weld inspection of power battery safety vents
- Post-weld inspection of passive components
- Post-weld inspection of pouch cell tabs
Technical specifications
- Laser wavelength: 1060–1090 nm
- Maximum power: 8000 W
- Collimation focal length: 100 mm / 125 mm
- F-theta focal length: 245 mm / 330 mm
- Input aperture: 30 mm
- Scanning angle: ±11°
- Repeatability: < 6 μrad
- Position drift: < 6 μrad/K
- Long-term drift: < 100 μrad
- Operating temperature: 25 ± 10 ℃
- Weight: 15 kg
Features / specifications summary
- Max. supported power: 8000 W
- Wavelength range: 1060–1090 nm
- Collimation focal length options: 100 mm or 125 mm
- F-theta focal length options: 245 mm or 330 mm
- Input beam diameter: 30 mm
- Scanning angle: ±11°
- High repeatability & low drift for stable welding
- Designed for integration with monitoring and compensation modules
