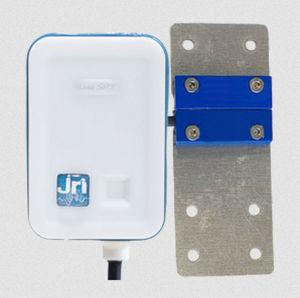

Temperature data-logger Nano SPY U
voltageuniversalcurrent

Temperature data-logger - Nano SPY U - JRI - voltage / universal / current
Temperature data-logger - Nano SPY U - JRI - voltage / universal / current
Temperature data-logger - Nano SPY U - JRI - voltage / universal / current - image - 2
Temperature data-logger - Nano SPY U - JRI - voltage / universal / current - image - 3
Temperature data-logger - Nano SPY U - JRI - voltage / universal / current - image - 4
Temperature data-logger - Nano SPY U - JRI - voltage / universal / current - image - 5
Add to favorites
Compare this product
Go to the JRI website for more information

Characteristics

Measured quantity
temperature, voltage, universal, current, pulse, dry contact
Connector type
wireless, radio frequency, online
Sensor type
Pt100
Display
without display
Applications
for monitoring
Other characteristics
battery-powered, with connector, IP67, miniature, with replaceable sensor
Memory capacity

10,000 unit

Description

Overview
  • Mini universal transmitter data logger


Key features
  • Sensor compatibility: Compatible with various analog signals (PT100, current, voltage, pulse/counting, digital ON/OFF) for flexible monitoring.
  • Easy installation: Supplied with a 4‑wire cable and optional Binder IP67 connector; integrated magnet for external mounting on temperature‑controlled enclosures.
  • User friendly: Ready to use with status and alarm LEDs for immediate on‑site monitoring.


Detailed description
  • Measures and logs data from analog sensors:
    • PT100
    • Current (4–20 mA / 0–20 mA / 0–1 V)
    • Pulse / counting
    • Digital (ON/OFF)
  • Connection via a 4‑wire cable compatible with various terminals.
  • Detachable sensors for quick replacement or exchange of the logger.
  • Optional Binder IP67 connector for simplified wiring.
  • External mounting on the enclosure using the integrated magnet.
  • 2.4 GHz RF transmission to a transmission module (Nano SPY LINK), then automatic upload to the secure JRI Cloud.
  • Data access through the JRI MySirius web application with real‑time alerts on threshold breaches.


Benefits
  • Ready to operate with status and alarm LEDs.
  • High measurement accuracy.
  • Simple installation with mounting eyes and integrated magnets.
  • Replaceable battery.
  • Non‑removable external probe (designed to preserve assembly integrity).


Specifications / technical data
  • Dimensions: 63 x 42 x 25 mm
  • Weight: 60 g
  • Frequency band: 2.4 GHz
  • Power: 3.6 V replaceable lithium battery
  • Battery life: 6 years
  • Memory: 10,000 timestamped measurements
  • Compliance: CE, ROHS, FCC, ETS 300-328
  • References: see table in the datasheet
  • Measurement range / Resolution / Accuracy: see specification table
