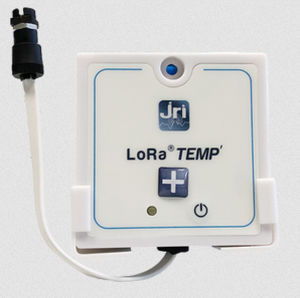

Temperature data-logger LoRa TEMP+ ES

LoRaWANPt100without display

Short description
The long-range connected recorder for external PT100 temperature sensors.

Compatibility and connectivity

• Designed to monitor temperature-controlled enclosures: cold rooms, freezers, incubators, etc.
• Connected to the LoRaWAN long-range network; sends data to the secure JRI Cloud via a telecoms network provided by an operator who is a member of the LoRa Alliance™ or via the Micro Gateway private network data transmission module.
• Recorded data is used on the JRI-MySirius monitoring platform; alerts are sent in real time if temperature thresholds are exceeded.

How it works

• Measures, records and sends temperature data from external PT100 probes.
• Logs measurements locally and transmits to cloud for monitoring and alerts.

Advantages

• Autonomous measurement, logging and alerting.
• Long-range LoRaWAN connectivity suitable for wide-area monitoring.
• Compatible with all PT100-type temperature sensors.
• Includes eyelets and a mounting base for straightforward installation.
• Replaceable long-life battery for extended field operation.

Technical specifications

• Model: LoRa TEMP+ ES
• Sensor: External PT100
• Measurement range: depends on connected sensor type
• Measurement accuracy: depends on connected sensor type
• Frequency bands: 868 - 915 MHz
• Memory: 10,000 time-stamped measurements
• Radio range: Up to 16 km in free field
• Interface: 1 white LED, 1 push button
• Dimensions: 65 x 65 x 28 mm
• Weight: 100 g
• Power supply: Interchangeable type A lithium battery
• Autonomy: 5 years (based on a measurement frequency of 15 min and a transmission frequency of 60 min)
• References / Technical data: see technical data section on product resources
