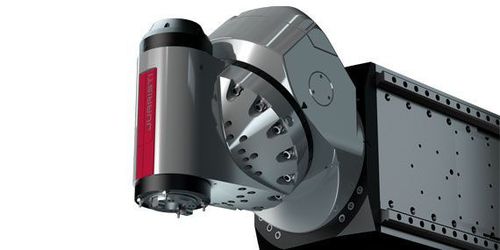

5-axis machining head ACD-7

universalcontinuousangle

JUARISTI has developed a wide range of heads for different types of milling, boring and turning operations. They are in-house manufactured and tested components that achieve high spindle and torque power, as well as high productivity levels when combined with our automation systems for tool or head change changes. FAST MOVEMENTS: 0-180º IN 7 SECONDS HIGH-SPEED TOOL CHANGER HIGH SPINDLE POWER AND TORQUE ERGONOMIC DOUBLE CONTINUOUS ROTATING AXIS DIRECT MEASUREMENT MAGNETIC DRUMS: ±3″ PRECISION QUICK REPOSITIONING CONTOURING TORQUE A&C: 3,000NM (S1)/CLAMPING TORQUE : 20,000 NM ROBUSTNESS C-AXIS INTEGRATED IN THE RAM OR HEADSTOCK ON T-TYPE MACHINE MORE COMPACT, ROBUST HEAD POSSIBILITY OF USING INTEGRATED C-AXIS IN VERTICAL HEADS OPTIMISED FOR MACHINES WITH RAM OR T TYPE PRODUCTIVITY SPINDLE SPEED UP TO 8,000 MIN-1 HIGH SPINDLE POWER (60 KW) AND TORQUE (1,600 NM) 2 MOTORS + 2 PINIONS ON EACH AXIS CLOSED-CIRCUIT COOLING OF BEARINGS Heads JUARISTI has developed a wide range of heads for different types of milling, boring and turning operations. AUTOMATIC INDEXING 1ºX1º / 0.001ºX0.001º CONTINUOUS ROTATION POWER 40 / 60 KW TORQUE 1,400 / 2,850 NM SPINDLE ROTATION SPEED 6,000 / 8,000 MIN-1 OIL-AIR LUBRICATION COOLED SPINDLE BEARINGS HIGH SPINDLE POWER (60 KW) AND TORQUE (1,600 NM) FAST REPOSITIONING: 0-180° IN 7 SECONDS SPINDLE ROTATION SPEED 6,000 / 8,000 MIN-1 INTERPOLATION TORQUE AXES A & C: 3,000 NM CLAMPING TORQUE AXES A & C: 20,000 NM AUTOMATIC CHANGING OF THE TURNING ACCESSORY ENABLES DEMANDING TURNING OPERATIONS THANKS TO ITS HIGH ROBUSTNESS CONTINUOUS 45 º ROTATING AXIS WITH DOUBLE PINION SYSTEM HIGH SPINDLE POWER (60 KW) AND TORQUE (1,600 NM)
