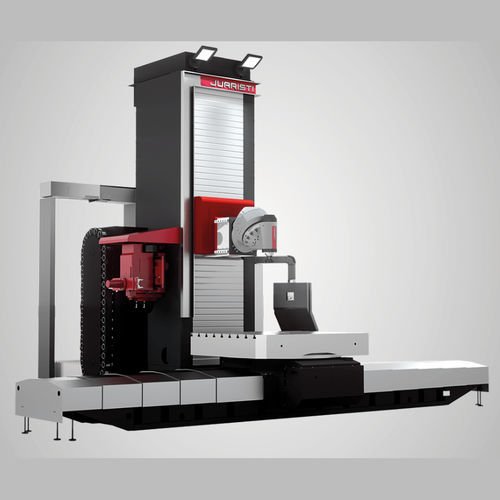

CNC boring and milling center TX-RAM

universalfor moldsfor aeronautics

The TX series is one of the most recognisable symbols in the JUARISTI universe. We have a long track record of designing this type of solutions, which over the years have become one of the most sought after by our customers. This machine can successfully carry out boring and milling operations. Its thermo-symmetrical structure provides high rigidity and precision. The JUARISTI TX-RAM stands out for its reliability and unbeatable performance. Box-in-box concept: head centred on the thermo-symmetric column and RAM centred on the headstock with four-sided guidance. High performance and vibration-free even under extreme conditions. Precision machining and long service life. Large part machining capacity: work area that allows turning of parts up to 5,000 mm long and weighing 60 t. STRUCTURAL ELEMENTS Oversized cast iron structure. Minimal thermal deformation ensured thanks to the thermo-symmetric column with centred head. Optimal head guiding and efficient force distribution. High-precision bearings. HEADS AND TABLES Powerful boring bar, diameter 130-150-180 mm., up to 64 kW. AOD Orthogonal head 1ºx1º | 40 kW | 5000 min-1. Compact vertical head ISO 50 1º x 1º. Hydrostatic rotary table with capacity 20-40-60 ton. Wide table size from 1,600 x 1,600 mm up to 3,000 x 4,000 mm. TECHNOLOGIES AND AUTOMATION Thermal sensors for spindle bearings real-time temperature monitoring. ATC chain type with 30-160 positions. ATC robot type up to 400 positions. Automatic Head Changer. Customizable with full enclosure, automatic door, roof and fume extraction system. Ergonomic operator platform: vertical and crosswise motion.
