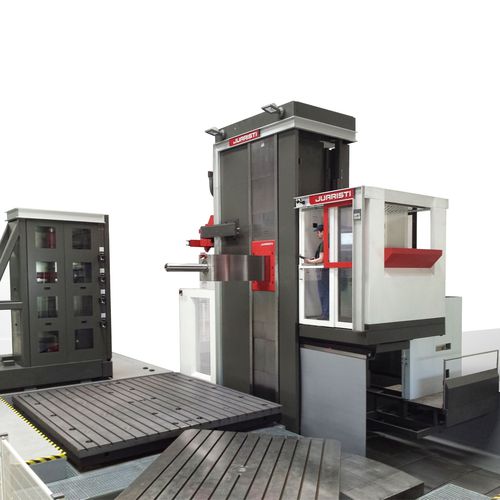

CNC boring milling machine MP7-RAM
universalcolumn typehigh-precision

CNC boring milling machine
CNC boring milling machine
CNC boring milling machine
CNC boring milling machine
CNC boring milling machine
CNC boring milling machine
CNC boring milling machine
Add to favorites
Compare this product


Characteristics

Control type
CNC
Spindle orientation
universal
Other characteristics
column type, high-precision, hydrostatic, high-rigidity, 4-axis
X travel

4,000 mm (157 in)

Y travel

3,000 mm (118 in)

Z travel

Max.: 1,600 mm (63 in)

Min.: 1,400 mm (55 in)

Power

Max.: 96 kW (130.52363 hp)

Min.: 64 kW (87.01575 hp)

W travel (spindle)

Max.: 1,200 mm (47 in)

Min.: 1,000 mm (39 in)

Description

HYDROSTATIC GUIDED MILLING-BORING MACHINE Unsurpassed precision and machining power with superior boring technology The MP series is at the pinnacle of the JUARISTI series. Unbeatable results, guarantee of the highest precision and very high machining power thanks to hydrostatic technology. Designed to meet the demands of the most complex, critical parts down to the last millimetre over a long service life. The hydrostatic guiding allows extraordinarily smooth movements. The triple automatic compensation system seamlessly blends with the hydrostatic technology, taking the stability of the entire system to the next level. This series guarantees maximum rigidity in the heaviest machining jobs. Premium solution with the best available technologies Unbeatable cutting capacity Extremely smooth movements and perfect finishes Long service life due to reduced vibrations Hydrostatic guiding on all axes, with wide hardened and ground guides RAM triple compensation system: column verticality, head + RAM centre of gravity and RAM straightness. Fully enclosed RAM with 4-sided hydrostatic guiding, made of ground cast iron. Long travel on all axes(40,000 – 10,000 – 3,400 mm X, Y, Z+W). Universal head ACD 1º x 1º | 0.001º x 0.001º | 37 kW | 6,000 min-1 | 60 kW | 3,000 Nm. Angular head 1º | 60 kW | 4,000 Nm. AOD Orthogonal Head 1º x 1º | 46 kW | 5,000 min-1 | 60 kW | 2,500 Nm. 1 or 2 axes continuous rotation head 6,000 min-1 / 18,000 min-1. Facing head of up to 2,000 mm. Rotary tables with up to 180 tonne capacity, which enable large, complex pieces to be machined in a single clamping. Rotary tables from 1,000 x 1,000 to 5,000 x 6,000 mm with 1 or 2 CNC axes.
