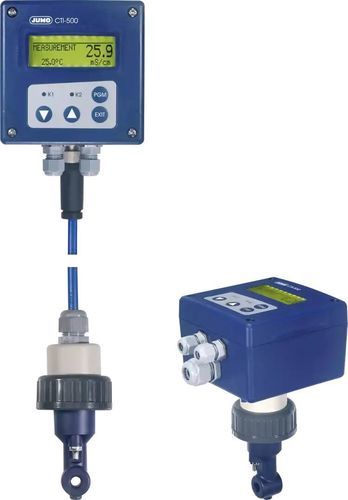

Wastewater conductivity transmitter JUMO CTI-500

for waterfor liquidswith temperature measurement

Overview
The JUMO CTI-500 is an inductive conductivity transmitter for measuring and controlling conductivity and concentration in liquid media. Integrated temperature measurement enables fast and precise temperature compensation. Additional functions permit combined switching of measuring range and temperature coefficient.

Short description
Inductive conductivity transmitter with switching contacts

Highlights

• Activation of up to 4 measuring ranges
• User-friendly programming via keypad and setup software
• Selectable temperature coefficients (up to 4)

Variants
Process connection

• 607 ✓
• 617 ✓
• Union nut G 1 1/2 PVC ✓

Insertion length (mm)

• 78.00 ✓
• 81.00 ✓

Basic type

• Head transmitter, no display / keypad ✓
• Head transmitter, with display / keypad ✓
• Transmitter, with probe and display, 10m ✓

Extra codes
Extra code 268

• Without extra code ✓

Extra code 844

• 844 ✓
• Without extra code ✓

Technical data
Measurands: Inductive conductivity; concentration of NaOH, HNO3; temperature
Sensor material: PP or PVDF
Outputs: 2 outputs and 2 potential-free contacts
Mounting: Pipe mounting, wall mounting
Operation: Keypad and setup program; fast-response temperature sensor
Protection type: IP67
Versions: Combined unit (transmitter and measuring cell in one device); split version (transmitter and measuring cell connected via cable)
Areas of application: Water and wastewater engineering; cooling tower monitoring; rinsing baths in electroplating plants; air washers

Technical specifications

• Measurands: Inductive conductivity; concentration of NaOH, HNO3; temperature
• Sensor material: PP or PVDF
• Outputs: 2 outputs and 2 potential-free contacts
• Mounting: Pipe mounting, wall mounting
• Protection: IP67
• Operation: Keypad and setup program; fast-response temperature sensor
• Versions: Combined unit or split version
