Programmable process controller diraTRON

compactModbusmultiple-output

Overview
Universally-applicable devices in 5 DIN formats for controlling process variables. The basic type includes autotuning, a ramp function, a program controller, manual mode, limit value monitoring functions, digital control signals, extensive timer functions, and a service counter.

Highlights

• Creation of individual ST code application
• Vibrant display
• High degree of functionality

Functionality and features

• Autotuning
• Ramp function
• Program controller
• Manual mode
• Limit value monitoring functions
• Digital control signals
• Extensive timer functions
• Service counter

General technical data
Inputs: 1 × universal input for thermocouple, RTD temperature probe, 0(2) to 10 V, 0(4) to 20 mA; 2 × digital input
Outputs: 1 × logic output; up to 2 relays (3 A / 230 V normally open contact); optionally up to 4: relay, logic, PhotoMOS®, analog output
Display: 2 × 18-segment LCD plus pixel matrix LCD

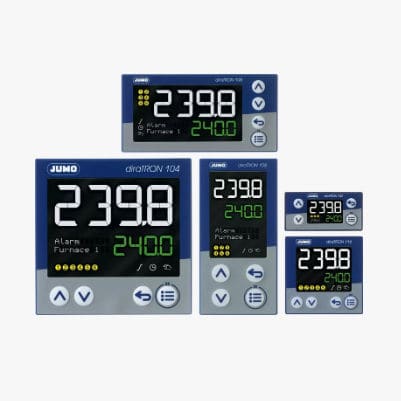

Formats: 132: 48 × 24 mm; 116: 48 × 48 mm; 108H: 48 × 96 mm; 108Q: 96 × 48 mm; 104: 96 × 96 mm
Interfaces: RS485 (Modbus-RTU), micro USB (configuration)

Videos
Product presentation and software-related videos are available illustrating device operation and interfaces.

Accessories (examples)

• USB cable, A connector to Micro-B connector
• DIN-rail mounting bracket (for type 702110 / 702111)
• Surface-mount housings and stainless steel front panels (various dimensions)
• Setup software (30-day trial version available)

Technical specifications

• Universal input for thermocouple and RTD; supports voltage and current inputs
• Two digital inputs
• Multiple output options: logic, relays, PhotoMOS®, analog
• Two 18-segment LCDs plus pixel matrix LCD
• Multiple front panel formats (48 × 24 mm to 96 × 96 mm)
• Communication: RS485 (Modbus-RTU) and micro USB for configuration
• Software: setup and configuration software available (trial)
