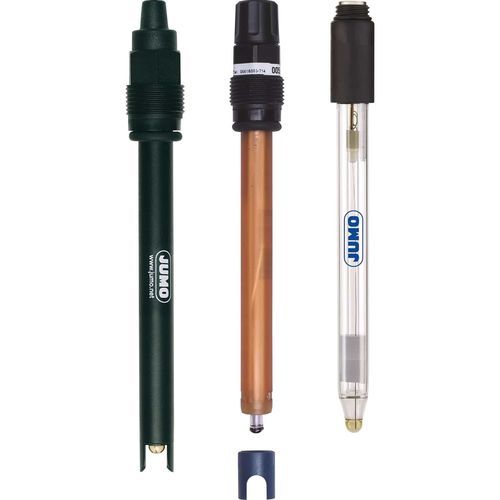

Glass pH sensor 201005

drinking waterwaternon-glass

Overview
The combination pH electrode measures the pH of water and aqueous media. It is designed for monitoring and control tasks in applications such as drinking water treatment, greenhouse irrigation, swimming pools and aquaristics.

Highlights

• Low-resistance UW glass sensing element
• Fast stabilization for quick measurements
• Cost-effective solution for standard applications

Area of application

• Drinking water
• Greenhouse technology
• Swimming pool water
• Aquaristics
• Surface water monitoring

Technical data (table)
General technical data
Active part — UW glass (pH 0 to 12, short-term pH 14)
Diaphragm — Ceramic or glass fibre
Temperature range — 0 to 60 °C
Pressure range — 0 to 6 bar
Electrode head — Plug head; plug head with fixed cable; screw head Pg13.5; screw head Pg13.5 with fixed cable
Features — Available in glass or plastic shaft for standard measurement tasks

Specifications / technical features

• Active part: UW glass (pH 0 to 12, short-term pH 14)
• Diaphragm: Ceramic or glass fibre
• Temperature range: 0 to 60 °C
• Pressure range: 0 to 6 bar
• Electrode head options: Plug head; plug head with fixed cable; screw head Pg13.5; screw head Pg13.5 with fixed cable
• Versions: Glass shaft or plastic shaft
• Typical applications: Drinking water, greenhouse technology, swimming pools, aquaristics, surface water
