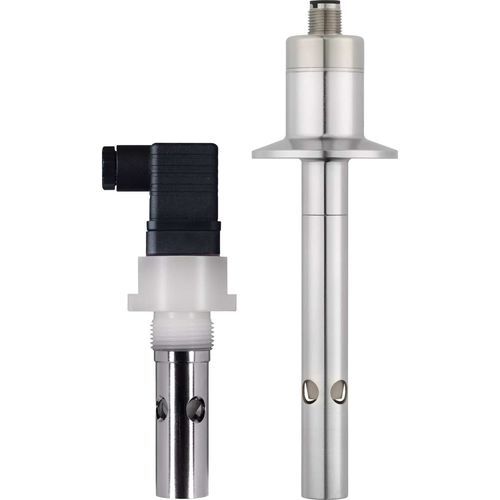

2-electrode conductivity sensor JUMO tecLine CR

for pure waterfor boiler feed waterfor water

Overview
The JUMO tecLine CR is a two‑electrode conductive sensor designed for electrolytic conductivity measurement in liquids. Materials comply with pharmaceutical requirements and FDA guidelines where specified.

Highlights

• Two‑electrode measuring principle
• Wide selection of process connections (threads, sanitary fittings, clamps)
• Pharmaceutical versions available with ASTM certificate

Technical data (General technical data)

• Measuring range: 0.05 μS/cm to 1 mS/cm
• Electrode material: Stainless steel (1.4571 or 1.4435), titanium
• Process connections: G 1/2 A, G 3/4 A, G 1 A, 1/2"-14 NPT, 3/4"-14 NPT, taper socket for union nut DN 25, DIN 11851, clamp DN 25
• Process pressure: 16 bar at 25 °C / 9 bar at 60 °C; high‑temperature version: 40 bar at 25 °C / 17 bar at 200 °C
• Operating temperature: Up to 135 °C (200 °C optional)
• Cell constant: K = 0.01 or 0.1

Features & Applications

• Robust industrial design with diverse process connection options
• Suitable for purified and highly purified water, boiler feed water
• Used in semiconductor chip manufacturing, ion exchange and reverse osmosis plants
• Available high‑temperature versions for demanding processes
