Mechanical thermostat heatTHERM-AT and DR

SPDTsurface-mountwall-mounted

Overview

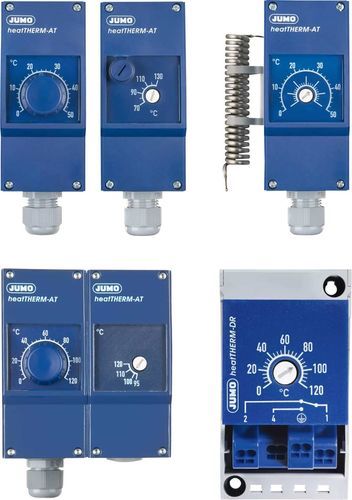

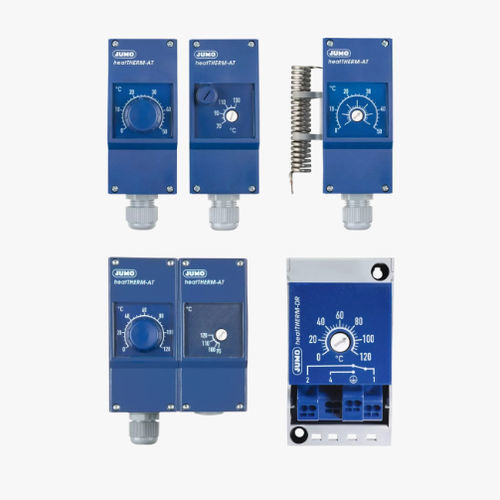

The JUMO heatTHERM-DR (design type 7+8) is a surface-mounted thermostat variant featuring a special bottom section for DIN-rail (TH35) or wall mounting. It enables straightforward installation in control cabinets and other equipment housings in accordance with DIN EN 60715.

Highlights

• PUSH IN connection technology
• High switching point accuracy
• Multiple application variants: thermostat, monitor, safety limiter

Product introduction / Features

• Surface-mounted thermostat for industrial and building-automation applications
• Available as single and double thermostat; room thermostat; DIN-rail mount thermostat; exhaust gas temperature monitor
• DR variant with special bottom section for quick DIN-rail TH35 or wall mounting

General technical data (table)
Versions: Temperature controller (TR), temperature monitor (TW), safety temperature monitor (STW), safety temperature limiter (STB)
Switching capacity: 16 A, 230 V
Switching elements: Single-pole snap-action switch
Maximum control range/limit value: 350 °C
Protection type: IP40 standard, IP54 optional
Areas of application: Building automation, heating industry, air-conditioning industry, control cabinets (DR), general mechanical engineering
Approvals: DIN, UL, PED, EAC
Features summary: Single and double thermostat; room thermostat; thermostat for DIN-rail mounting; exhaust gas temperature monitor

Technical specifications

• Design types: heatTHERM-AT and heatTHERM-DR (DR = special bottom section for DIN-rail or wall mounting)
• Mounting: Surface-mounted; DR variant compatible with TH35 DIN-rail
• Connection technology: PUSH IN
• Switching capacity: 16 A at 230 V
• Switching element: Single-pole snap-action switch
• Maximum control/limit value: up to 350 °C
• Protection class: IP40 standard, IP54 optional
• Approvals: DIN, UL, PED, EAC
• Typical applications: Building automation, heating, air-conditioning, control cabinets, mechanical engineering
