Pt1000 temperature sensor DELOS T02

in metal housingwith housingEthernet

Overview

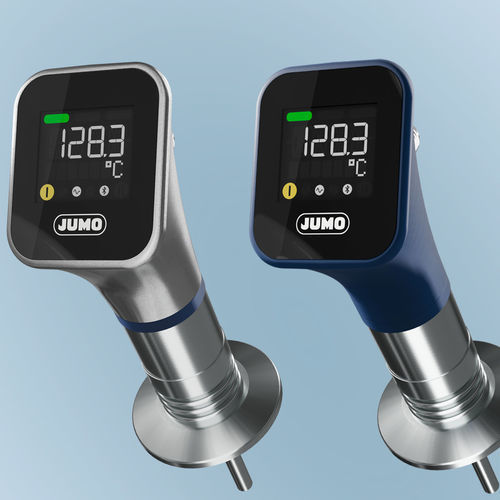

The JUMO DELOS T02 temperature probe with display integrates measurement, switching and local indication in a single device. The rotatable display housing is available in stainless steel or plastic, enabling fast installation and optimal viewing alignment. Configuration is possible via NFC and Bluetooth using the JUMO smartCONNECT app; the SPE variant supports cloud connectivity.

Highlights

• Integrated measuring, switching and display functions
• Rotatable LCD housing for flexible positioning
• Multiple process connection options including aseptic versions

Customer benefits

• Quick, interface‑independent configuration via NFC and Bluetooth
• Improved process reliability and product quality through accurate sensing
• Flexible integration with analog, switching, IO‑Link or Single Pair Ethernet (SPE)
• Compact design with local status display per NAMUR NE 107

Technical data

• Sensor: Pt1000
• Process connections: none, G1/4, G1/2, M14×1, 1/4–18 NPT, 1/2–14 NPT, aseptic, taper socket with union nut, clamp socket, tank connection with grooved union nut, JUMO PEKA
• Outputs: 4–20 mA, 0–10 V DC, switching output, IO‑Link, Single Pair Ethernet (SPE)
• Protection fitting: Adaptation system for thermowells 902812/10
• Connection: M12 connector
• Display: Rotatable LCD (22.5 × 26.0 mm) with device status per NAMUR NE 107
• Configuration: JUMO smartCONNECT app (NFC, Bluetooth)
• Operating temperature: -50 to +150 °C (without extension); -50 to +260 °C (with extension); -40 to +120 °C (h2ready)
• Accuracy: ±(0.3 + 0.005 × |t|)
• Protection rating: IP65, IP67
• Approvals: UL, EHEDG, h2 ready
