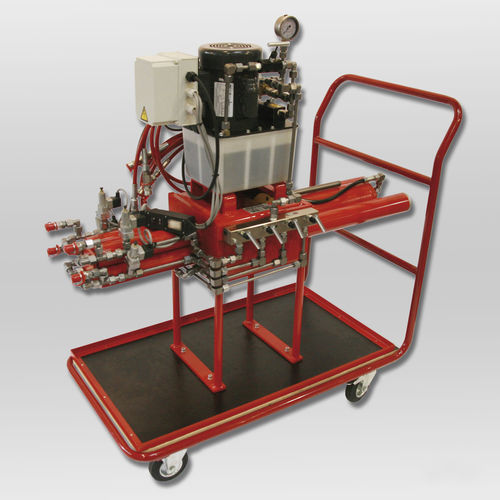

Electric motor hydraulic power unit JD 40 E+ VS
liftingwheel-mounted

electric motor hydraulic power unit
electric motor hydraulic power unit
Add to favorites
Compare this product


Characteristics

Power source
electric motor
Applications
lifting
Other characteristics
wheel-mounted
Operating pressure

520 bar
(7,542 psi)

Description

Advantages of Hydraulic pressure blocks • Synchronized lifting of multiple jacks. For loads with decentralized center of gravity. Simple and safe. • Uncomplicated operation via push button (remote control). • All slave-cylinders equipped with 520 bar safety pressure switches. Controls monitor pressure switches with LED indicator preventing any possible overloading. • Retracting of the hydraulic jacks also without load (JH 15 - 20 G plus EX). • Load independent, maintains constant lifting speed. • Controllable lowering speed. • The complete system is mobile and conveniently mounted on a cart. • Electrical pump JPE 30 and VS-control unit for driving individual lifting devices. • Clear and simple control unit, adjustable to control all or individual jacks. Configurable also for using three-point lifting system. • Oil volume in the system is sufficient for up to 4 pcs. JH 10 G plus / JH 10 G plus EX / JHS 10. Larger jacks can be operated, but you need to lift twice to reach the full stroke. • The cylinders in the pressure block are outfitted with spring return to retract the pistons automatically.
