stepper motor controller / compact

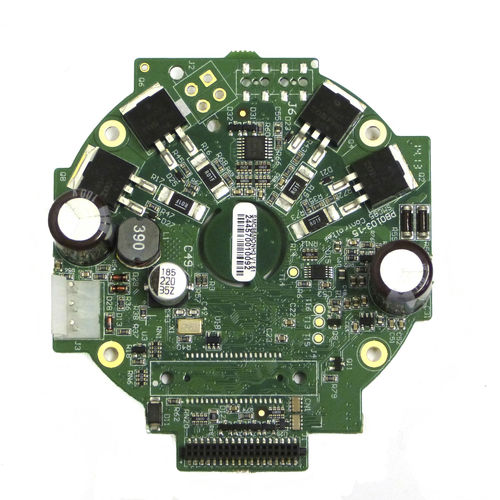

SMC85 without housing

Add to MyDirectIndustry favorites
Compare this product
stepper motor controller / compact stepper motor controller / compact - SMC85 without housing
{{requestButtons}}

Characteristics

  • Motor type:

    stepper

  • Other characteristics:

    compact

Description

Stepper Motor Controller with PLC, CANopen and 8IO

A Stepper Motor Controller with RS485 and CANbus serial interface. 8IO can be configured to input, output or analog input. Can be controlled via nanoPLC and MacTalk. The very compact, 78.4x86.2mm, PCB contains everything needed to solve a modern control task as stand-alone or controlled from a PLC or PC. MODBUS RTU and CANopen gives the possibility for easy connection to a PLC. For PC or IPC an ActiveX/OCX driver is available so that interface to LABview, Excel, VB or other Windows-programs is simple.
NanoPLC with 8IO in 24V
RS485 up to 962kbit
CANOpen DSP402
MODBUS RTU
Resolution up to 819.200 step/rev.
Velocity precission 0,01 RPM
Pulse/Direction mode
Supply 12-80VDC
Motor current 0-9 Amp RMS
Dual supply for safe emergency stop
Active X / OCX driver available
