Cardboard baling press PAC

for paperfor plasticsfor bottles

Product overview

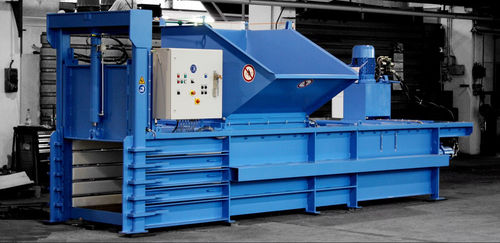

The Kadant PAAL PAC Series is a closed-end, semi-automatic baler designed for compact footprint installations and processing a wide range of recyclable materials. It features manual horizontal wire tying, a hydraulically operated vertical sliding/tunnel (portcullis) ejection door, and full bale ejection enabled by a very long ram stroke. Machines are configurable with different hopper designs, motor power options and additional accessories to match throughput and tonnage requirements.

Features

• Semi-automatic closed-end baler with manual horizontal wire tying
• Vertical hydraulically operated sliding/tunnel (portcullis) ejection door
• Full bale ejection with very long ram stroke for easy removal
• Siemens S7 control system for operation and simplified maintenance
• Configurable hopper designs and multiple motor size options

Benefits

• Compact footprint suitable for limited-space installations
• High bale density and weight by compaction against closed ejection door
• Efficient removal of finished bales thanks to full ejection

Media
Product brochure (PDF) and demonstration videos available on request.

Technical specifications

• Type: Closed-end, semi-automatic baler
• Tying: Manual horizontal wire strapping
• Door: Vertical hydraulic sliding/tunnel (portcullis) ejection door
• Bale ejection: Full bale ejection (very long ram stroke)
• Controls: Siemens S7 control system
• Materials processed: Paper, cardboard, PET bottles, foam, aluminium cans and similar recyclables
• Options: Various hopper designs, multiple motor power choices and additional configurable options
• Design focus: Compact footprint, high compaction/bale weight, simplified operation and maintenance
