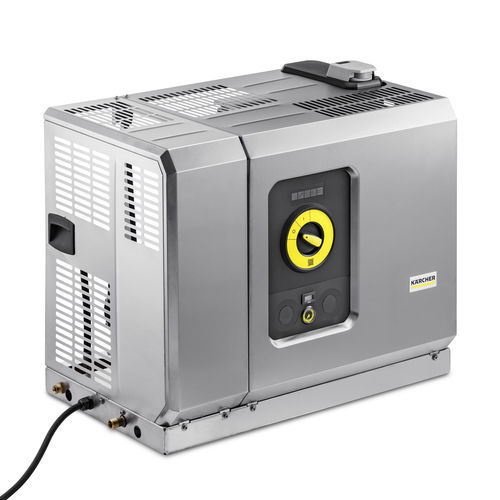

Cold water high-pressure cleaner HD 25/15-4 St

three-phaseelectricstationary

Product overview
The Kärcher HD 25/15-4 St is a stationary cold water high-pressure cleaner engineered for intensive continuous operation in demanding industrial environments. It delivers a working pressure of 100–150 bar and a flow rate of 750–2500 l/h, supporting simultaneous use by up to 3 users. The machine features a crankshaft pump with brass cylinder head, stainless steel frame and cover, and a slow-running 4-pole motor with soft start. An integrated display reports operating parameters, fault messages and maintenance reminders. Dual supply tanks include dry-running and descaling protection for reliable operation.

Features and benefits
Robust and reliable for tough applications

• Crankshaft pump with brass cylinder head and ceramic pistons designed for continuous operation.
• Low-speed industrial pump and 4-pole motor with soft-start to reduce wear and extend service life.

Easy and intuitive operation

• LED display shows operating status, faults and pending pump maintenance.
• Practical rotary switch for on/off control.
• Remote control connection and capability to manage up to 6 extraction points.

High-quality equipment

• Integrated elapsed time counter and pressure gauge for clear operating information.
• Stainless steel frame and cover for corrosion resistance, hygiene and durability.
• Two supply tanks with float valve, dry-running protection and temperature monitoring at the inlet.

Ready for use quickly at any time

• Pump activates when the trigger gun is operated, enabling immediate work from any supply point.
• No setup time required; stationarity removes the need to transport mobile units.
• Fast availability increases productivity and operational flexibility.

Simultaneous use by up to 3 users

• Immediate cleaning start at extraction points reduces downtime.
• Parallel operation increases throughput and saves time.
• Centralised cleaning reduces investment and maintenance costs compared with multiple mobile units.

Electronic monitoring for operational safety

• Automatic shut-off in case of leaks or phase failure.
• Overvoltage and undervoltage protection for the motor and electronics.
• Dry-running protection to prevent pump damage.

Designed for continuous industrial use

• Durable materials (stainless steel, brass) and robust construction minimise downtime and maintenance.
• High cleaning capacity and fixed installation reduce setup times on site.
• Cost-effective through long service life and low repair requirements.

Simple maintenance and serviceability

• Easy access to components shortens downtime for routine checks and repairs.
• Quick maintenance procedures increase machine availability.
• Lower operating costs due to simplified servicing.

Flexible and versatile

• Wide range of compatible accessories and multiple extraction points for varied work sites and tasks.
• Adaptable to additional areas with increased cleaning requirements.
• High productivity through simultaneous use by multiple operators at different stations.

Accessories and options

• Automatic pressure relief (option).
• Remote controls for local operation at the point of use (option).

Scope of supply

• Servo Control
• Frame and cover: stainless steel
• Prepared for Servo Control

Equipment

• Crankshaft pump with ceramic pistons
• Calcification protection
• Dry-running protection
• Large water fine filter
• Storage tank with float valve
• Elapsed time counter
• Prepared for remote operation
• Sight glass for oil level
• Oil dipstick
• Air-cooled motor

Application areas

• Companies with constant, high cleaning demands
• Cleaning of stables, milking parlours, agricultural machinery and vehicles
• Food processing (meat, dairy, bakery, confectionery, beverages)
• Food, cosmetics and chemical industries
• Vehicle fleets and transport companies: wash halls and depots for trucks, buses and commercial vehicles
• Workshops, garages, building yards and municipal facilities
• Vehicle and machine cleaning in automotive, industrial and agricultural contexts
• Production halls, warehouses, logistics buildings and heavy industry facilities

Technical data
Number of current phases (Ph): 3
Voltage (V): 400
Frequency (Hz): 50
Flow rate (l/h): 750 - 2500
Working pressure (bar): 100 - 150
Max. pressure (bar): 200
Inlet temperature (°C): 50
Power cable (m): 5
Water inlet: 3/4″
Number of users: 3
Portability: stationary
Weight (with accessories) (kg): 153.5
Weight incl. packaging (kg): 164.1
Dimensions (L × W × H) (mm): 980 x 580 x 815

Specifications

• Model: HD 25/15-4 St
• Working pressure: 100 - 150 bar
• Maximum pressure: 200 bar
• Flow rate: 750 - 2500 l/h
• Power supply: 3 phases, 400 V, 50 Hz
• Max. inlet temperature: 50 °C
• Number of simultaneous users: up to 3
• Water inlet connection: 3/4″
• Power cable length: 5 m
• Weight (with accessories): 153.5 kg
• Dimensions (L × W × H): 980 × 580 × 815 mm
• Construction: stainless steel frame and cover; brass cylinder head; crankshaft pump with ceramic pistons
• Protection/features: dry-running protection, calcification protection, elapsed time counter, pressure gauge, temperature monitoring, sight glass for oil level
