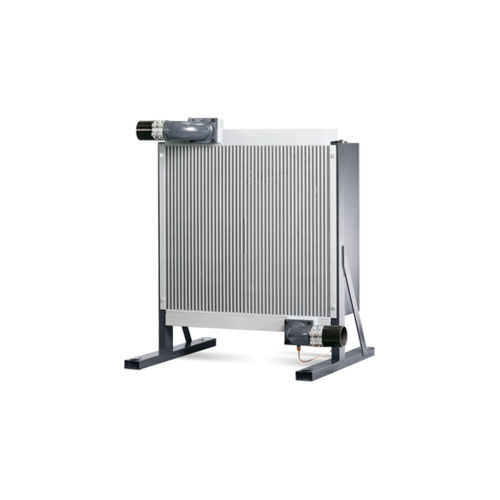

Air aftercooler ACA, WRN
water-cooledshell and tube

air aftercooler
air aftercooler
Add to favorites
Compare this product

Characteristics

Material
air
Other characteristics
water-cooled, shell and tube
Maximum temperature

Max.: 160 °C (320 °F)

Min.: 10 °C (50 °F)

Flow rate

Max.: 150 m³/min (5,297.2 ft³/min)

Min.: 30 m³/min (1,059.44 ft³/min)

Pressure

1 bar (14.504 psi)

Description

Kaeser aftercoolers / heat exchangers are specifically designed for use with Kaeser blowers. They are designed for all applications requiring an upper limit on the process air temperature. In addition, it is possible to recover heat energy with aftercoolers / heat exchangers. Kaeser offers two cooling concepts for aftercooling: For use when the ambient air is cool enough and without a water source: Air cooling (cross-flow heat exchanger, ACA series). For achieving very low temperatures: Water cooling (shell and tube heat exchanger, WRN series). The heated cooling air can be used for hall-heating purposes, whilst the heated cooling water can be used in water treatment systems, for example, for drying sludge. Your advantages Full energy transfer: Our aftercoolers / heat exchangers are specifically designed for use with Kaeser blowers. This keeps flow and pressure losses to an absolute minimum, therefore allowing all of the input energy to be available for further use.
