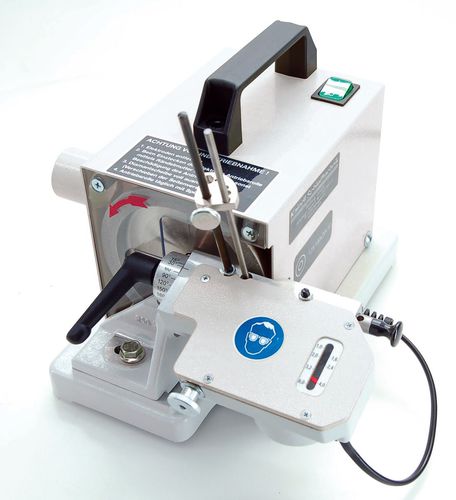

Electrode sharpening machine WIG 4
automaticprecision

Electrode sharpening machine - WIG 4 - KAINDL REILING - automatic / precision
Electrode sharpening machine - WIG 4 - KAINDL REILING - automatic / precision
Electrode sharpening machine - WIG 4 - KAINDL REILING - automatic / precision - image - 2
Electrode sharpening machine - WIG 4 - KAINDL REILING - automatic / precision - image - 3
Electrode sharpening machine - WIG 4 - KAINDL REILING - automatic / precision - image - 4
Add to favorites
Compare this product
Go to the KAINDL REILING website for more information

Characteristics

Applications
electrode
Control type
automatic
Other characteristics
precision
Spindle speed

2,840 rpm
(17,844 rad.min-1)

Power

0.05 kW
(0.07 hp)

Description

Sharpens TIG electrodes precise and simple in longitudinal shape. Provides repeatable welding results on automatic systems, respectively robot welding. functional handle centric tip to central axis in longitudinal direction stable arc for Ø 1,0 / 1,6 / 2,0 / 2,4 / 3,2 and 4,0 mm angle setting from 15° to 180° ALSO AVAILABLE AS WORKSTATION SOLUTION: Electrode sharpening machine WIG 4 + Machine cabinet + vacuum cleaner for dust exhaust BASIC VERSION: Dianmond grinding wheel Ø 125 mm D107 Adaptor or dust exhaust Adjustment slide standard for electrodes Ø 1,0 / 1,6 / 2,0 / 2,4 / 3,2 / 4,0 mm Special sizes upon request
