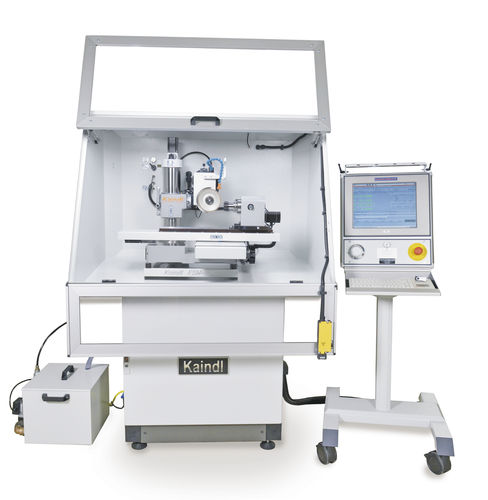

TOOL & UNIVERSAL CUTTER GRINDER FSM-CNC
This machine is equipped with a high-performance PC incl.
touchscreen and digital jogwheel.
This PC controls three linear- and a rotary axis simultaneously.
The geometry of grinding is flexibly programmable by G-code.
For cutters up to Ø 150 mm, cutter grinding on face, spiral, as well as chip space
Built on steady IPC base, free programmable with G-code
based on the solid Linux Ubuntu system software.
Basic equipment
FSM-CNC universal tool and cutter grinder
4 axis (X,Y,Z,A)
Traverse distance X=300mm, Y=135mm, Z=192mm, A=circular axis
incl. central lubrication
incl. 5Mpix camera system with support and software for windows and Mac
(notebook/PC not included)
incl. pump cooling with 30L cascade tank
incl. optional CBN cup wheel Ø 125 mm B76 or
incl. diamond cup wheel Ø 125 mm D76
incl. PKD dresser unit
incl.support SK40 + Ø 10 mm ER collet
Plug & Play Extension:
Item-No. 18051 Module: Horizontal table for grinding of
circular knives, form knives, saw blades
Item-No. 18782 Module: Programme package for HSS saw blades
Item-No. 18305 Module: High-frequency spindle
Item-No. 19188 Module: Circular grinding
Item-No. 18440 Module: Electronic 3D sensor KT130
