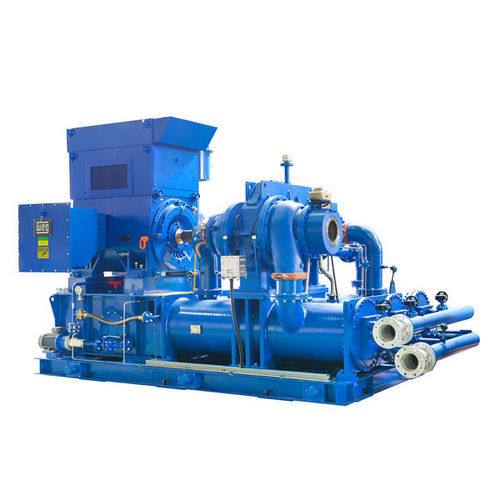

Centrifugal compressor

airnatural gasnitrogen

Overview
Kaitec compressor (Shanghai) Co., Ltd., a wholly-owned subsidiary of Kaishan, is the market developer for Kaishan's high-end products. It provides market sales and support for screw compressors, centrifugal compressors and fluid machinery.

Kaitec T series centrifugal compressor

• Customized impeller and diffuser design
• Higher efficiency and reduced maintenance costs
• Global design and production standards
• Latest 3D fluid dynamic analysis
• Energy optimization control to limit air volume fluctuation
• Modulation control to maintain constant pressure via venting
• Suitable for compressible media: air, nitrogen, argon, natural gas, coke oven gas, steam, etc.
• Customizable according to customer requirements

Scope of supply (T series)

• Rated pressure range: 0.6~2.0 bar
• Flows range: 4~850 m3/min
• Rated power range: 150~6600 kW

H series
H series units are standardized centrifugal compressors produced by Zhejiang Kaishan Centrifugal Machine Co., Ltd. They feature a modular design and customer-oriented configurations to simplify selection and reduce delivery time.

Applications (H series)

• Chemical industry
• Biotech and fermentation
• Shipbuilding
• Automotive industry
• Electronics
• Metallurgy
• Textile industry
• Tobacco industry
• Other industrial sectors

Scope of supply (H series)

• Pressure range: 2~11 bar
• Flows range: 40~800 m3/min
• Power range: 150~4500 kW

Technical features (H series)

• Standardized compressor packages for easy selection and short lead times
• Optimized interstage compression ratio distribution; aerodynamic components validated by advanced software and testing to ensure high efficiency across operating ranges
• Rotor dynamics designed and analyzed with professional software for stable operation; each impeller dynamically balanced and overspeed-tested to ensure quality

Features / specifications

• Applicable media: air, nitrogen, argon, natural gas, coke oven gas, steam, etc.
• T series supply range: pressure 0.6~2.0 bar; flows 4~850 m3/min; power 150~6600 kW
• H series supply range: pressure 2~11 bar; flows 40~800 m3/min; power 150~4500 kW
• Design and manufacturing: customized impeller and diffuser, 3D fluid dynamic analysis, energy optimization control, modular standardized unit design
