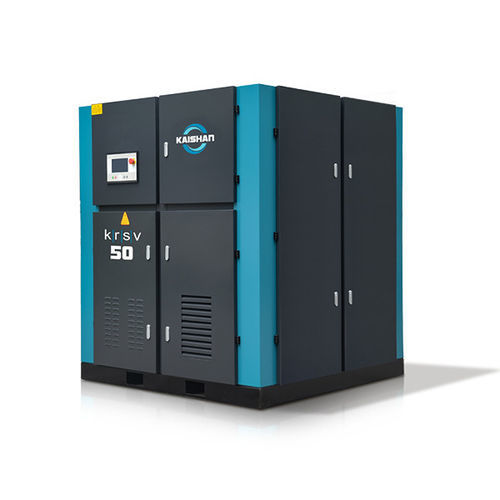

Screw vacuum pump

oil-freefor blowerslow-noise level

Overview
Chongqing Kaishan Fluid Machinery Co., Ltd. (Kaishan) manufactures a range of fluid machinery including screw vacuum pumps, oil-free screw blowers, magnetic levitation blowers and a developing dry pump series. Products are engineered for industrial vacuum and aeration processes with emphasis on compact footprint, energy-efficient operation and oil-free air supply.

Vacuum pump
The screw vacuum pump features an optimized design for application conditions to maximize evacuation and reduce energy use. Key features include a patented intake valve for differential-pressure injection, elimination of forced oil injection to remove oil-pump losses, and a permanent-magnet motor with speed regulation. These elements produce efficient pumping across 5–350 mbar and stable operation down to the limited pressures of 0.5–0.67 mbar.

Innovative airend design
The airend uses a "Y" rotor profile and a triple bearing arrangement (cylindrical + tapered roller bearings) to deliver bearing life >100000 hours. Low-speed, large-nose geometry reduces noise and improves stability. The integrated design simplifies installation and maintenance.

Scope of supply (vacuum pump)

• Power: 11 kW – 160 kW
• Pumping speed: 6.9 m³/min – 96.9 m³/min
• Limited pressure: 0.5 mbar(A), 0.67 mbar(A)

Application fields (vacuum pump)

• Medical: hospital central vacuum systems, enclosure suction, laboratory central vacuum
• Pharmaceutical: degassing, vacuum filling, suction filtration
• Electronics: component handling, PCB manufacturing, central vacuum systems
• Food: processing, packaging, vacuum cooling and deaeration
• Material handling: automated pick-and-place, bulk conveying, vacuum handling
• R&D: laboratory vacuum systems, drying and distillation
• Printing & paper: binding, printing lines, degassing bonding
• General industry: CNC processing, thermoforming, extrusion, mold degassing, battery manufacturing

Blower
Kaishan oil-free screw blower uses a patented high-efficiency screw rotor profile with precision synchronization gears. The bearing is sealed away from the compression chamber ensuring oil-free discharge. Design enables no-foundation installation, low pulsation and reduced noise. Integrated control supports remote operation and optional frequency-conversion drives and start-up unloading valves. Permanent-magnet frequency-conversion motors are standard.

Scope of supply / Technical features (blower)

• High efficiency with engineered performance curves for energy saving
• Low noise meeting national standards and advanced competitive levels
• Long life: SKF high-speed bearings, bearing life >100000 hours; machine life >30 years
• Flexible flow control: VFD + PID for accurate gas volume matching
• Multiple control modes: oxygen-content or pressure control per customer needs
• Integrated frequency-conversion units for simplified installation
• Standard motor/host design for easy on-site maintenance (belt or direct coupling)

Application (blower)
Sewage aeration, homogenization, air-water contact processes, oxidative desulfurization, pneumatic conveying, fermentation/biopharma, printing, paper, galvanizing, textiles

Technical specifications

• Manufacturer: Kaishan (Chongqing Kaishan Fluid Machinery Co., Ltd.)
• Product types: screw vacuum pump, oil-free screw blower, magnetic levitation blower, dry pump series (under development)
• Vacuum pump power range: 11 kW – 160 kW
• Vacuum pump pumping speed: 6.9 m³/min – 96.9 m³/min
• Vacuum pump limited pressure: 0.5 mbar(A), 0.67 mbar(A)
• Airend: "Y" rotor profile; cylindrical + tapered roller triple bearing
• Bearing life: >100000 hours
• Machine design life (blower): >30 years
• Patented intake valve, permanent-magnet speed control, PID pressure matching
• Oil-free compression chamber for blowers; options: VFD, start-up unloading valve, integrated control
