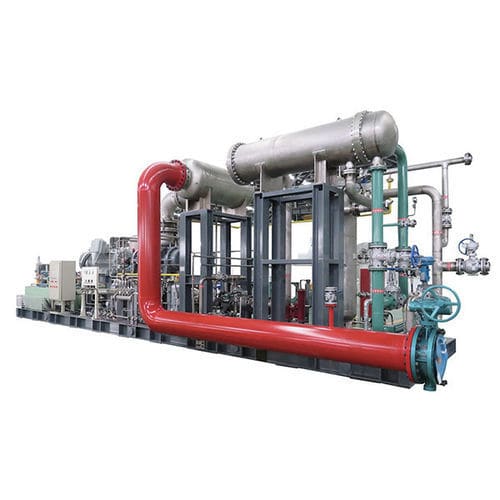

Screw compressor

natural gashydrogennitrogen

Overview
Kaishan offers process screw compressors with independent intellectual property rights and a professional manufacturing system. The product line includes dry screw units and oil-injection screw units engineered to deliver either pure (oil-free) or lubricated compressed gas for industrial process applications.

Dry screw compressor unit
Kaishan dry screw compressors operate without injecting lubricating oil into the compression chamber, providing an oil-free and dust-free compressed medium suitable for flammable, explosive or toxic gases.

Innovative air-end design
The air-end features a 'Y' rotor profile and a triple bearing arrangement of cylindrical and tapered roller bearings with bearing life >100,000 hours. The low-speed, large‑nose design ensures stable performance, reduced noise, integrated layout and straightforward installation.

Application

• Petrochemical industry
• Refineries
• Chemical plants
• Coal chemical and energy industries

Scope of supply (dry screw)

• Inlet pressure: -0.085 ~ 0.8 MPa
• Discharge pressure: 0.15 ~ 2.0 MPa
• Air displacement: 10 ~ 1380 m3/min

Technical features (dry screw)

• Optimized rotor profile, poppet valve and orifice design for high efficiency and energy savings
• No gearbox and smaller rotor diameter; large bearing diameter and short aspect ratio for reduced noise
• No rectangular sealing strip, low exhaust flow and low tip speed; direct drive for high unit reliability

Oil injection screw compressor unit
Kaishan oil-injection screw compressors deliver reliable performance with low vibration and noise, high efficiency and fewer wear-prone parts. The lubrication method simplifies the mechanical structure and improves airtightness.

Application (oil injection)

• Petrochemical applications
• Fuel gas compression
• Acid hydrocarbon gas handling
• Dangerous gas treatment

Scope of supply (oil injection)

• Inlet pressure: -0.05 ~ 0.8 MPa
• Discharge pressure: 0.2 ~ 4.0 MPa
• Air displacement: 2.2 ~ 150 m3/min

Technical features (oil injection)

• Customized orifice, variable compression ratio and automatic back-pressure matching to reduce power consumption and improve efficiency
• Modular, full skid-mounted design for compact footprint and rapid deployment
• Integrated electrical and control system with internet-based remote monitoring capability

Type of gas handled
Coke oven gas, coal mine gas, natural gas, coalbed methane, methane, ethylene, styrene, blast furnace gas, butadiene, acid hydrocarbon gases, steam recovery, steam, decomposition gas, nitrogen, acetylene, lime kiln gas, hydrogen, carbon dioxide, flare gas, ethane, propylene, propane, ammonia, chlorine, carbon monoxide, visbreaking furnace exhaust, cryogens, fuel gas, helium, hydrocarbon mixtures, butane, methane, acid gas and other gases.

Technical specifications

• Product types: Dry screw compressor unit; Oil-injection screw compressor unit
• Air-end rotor profile: 'Y' rotor profile
• Bearing design: Triple arrangement of cylindrical and tapered roller bearings; bearing life > 100000 hours
• Dry screw inlet pressure range: -0.085 ~ 0.8 MPa
• Dry screw discharge pressure range: 0.15 ~ 2.0 MPa
• Dry screw air displacement: 10 ~ 1380 m3/min
• Oil injection inlet pressure range: -0.05 ~ 0.8 MPa
• Oil injection discharge pressure range: 0.2 ~ 4.0 MPa
• Oil injection air displacement: 2.2 ~ 150 m3/min
• Design features: Low-speed, large‑nose air-end; direct drive; no gearbox; reduced noise; compact integrated/skid-mounted layout
• Control and monitoring: Integrated electrical and control system with remote monitoring capability

Additional information
Kaishan's LMF (Alamafa) brand supplies high-pressure reciprocating compressors as a complementary product line within the group to meet specialized high-pressure reciprocating compression requirements.
