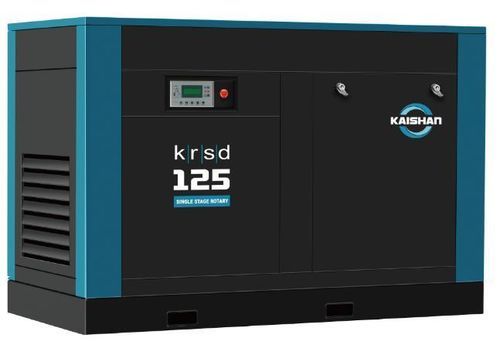

Screw compressor KRSD

airelectricstationary

Kaishan KRSD 50Hz series Single-Stage Rotary Screw Air Compressor
1. ScopeThis specification is for direct drive, oil-lubricated, single-stage air cooled KRSD series rotary screw air compressor.
2.The compressor manufacturer shall be certified under ISO 9001 / 9002 quality standards and ISO 14001 environmental standards.
3.The units shall be manufactured in accordance with this specification.
Drive Motor11-250kw TEFC IE3/IE4Outlet Connection
11-90kW male pipe thread
110kW and above ISO standard flange
Voltage: 380/400/415V/3Ph/50Hz
Rated pressure8/10/13bar
Ambient temp.0-45℃.
Features include:
Good Energy Efficiency & Cost of Ownership:
Energy Efficient Single-Stage Design
Premium SKF bearings for supreme reliabilityWye-Delta starter for reduce inrush current-fixed speed.Totally Enclosed Fan Cooled (TEFC) type main motor with insulation class F, direct drive designOversized coolers (air and oil) designed for high ambient applications.Full powder coated acoustical enclosure with hinged doors providing easy access to maintenance items. Flame retardant foam stick on acoustical enclosure to attenuate sound level.Heavy duty inlet filter for clean compressed air
Stainless steel flex lines on air circuit for increased reliability and reduced vibration.Fitted with an aluminum, air-cooled, oil cooler and aftercooler.Axial fans driven by Totally Enclosed Fan Cooled (TEFC) motors3-Stage oil separation to ensure low oil carryover.Factory fill with “kerry-8#” premium PAO/POE synthetic lubricant designed for 4,000 hour lifeFull Feature Intelligent Controller:oBoth touch screen or push-button navigationoControl, monitor the operation and condition of the air compressoroProvides safety monitoring, protection and service alertsoBuilt in networking capabilities and external monitoringThe control system shall have the capability to monitor the following functions: oDischarge air pressureoElement outlet temperatureoCompressor statusoMotor overload status oLoaded/unloaded hoursoRunning hoursCompressor protective functions shall include:oEmergency stopoHigh discharge temperature oHigh discharge pressureoMotor overloadoService warnings3.Optional featuresVariable speed control, approved manufacturers include:SchneideroKaishanoYaskawaWater-cooled (75kw and above)
