Distribution electrical enclosure

equippedmobilevertical

Short description

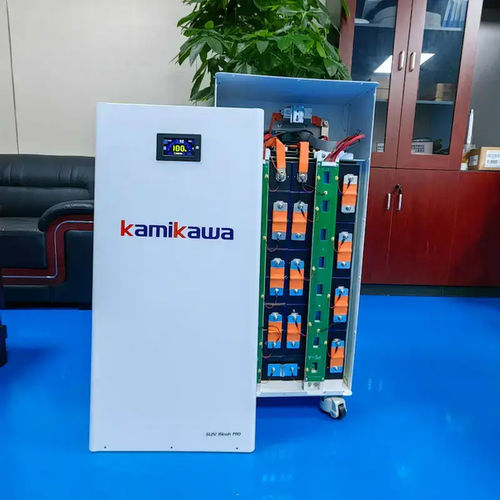

Vertical Home Storage Battery Box is a floor-standing cabinet kit supplied without lithium cells, designed for OEM wholesalers, solar installers and residential energy storage manufacturers to quickly create branded storage systems. The enclosure supports 16S (48V) cell layouts and single-unit capacities up to 15 kWh.

Key Features

• Complete accessory set (cells excluded): aluminum cabinet, optional JK-BMS variants, JK display, terminal connectors, copper cables, air switch and movable heavy-duty casters.
• Internal layout fit for 16S (48V) cells in 280Ah/314Ah formats; supports residential off-grid setups up to 15 kWh per unit.
• High-volume ready molds and CNC precision cutting ensure consistent hole positions and fast mass production (monthly capacity 10,000+ sets).
• Fully customizable: cabinet dimensions, internal partitions and wiring, surface finish and UV-printed private LOGO.
• Vertical floor-standing design improves indoor heat dissipation and suits indoor and semi-outdoor solar installation scenarios.

Core Advantages

• One-stop service from custom drawing and prototyping to bulk production, branded packaging and global delivery.
• R&D support with full 2D/3D engineering drawings and adaptable internal wiring for different cells and BMS models.
• Standard accessory list and mature production process reduce sample lead time; bulk OEM orders typically processed in 7–10 working days.
• Strict component inspection against fixed configuration standards to lower procurement and testing costs.
• Vertical upright form complements wall-mounted and portable enclosure ranges for flexible residential storage design.

Custom Services

• Structural layout optimization for bulk OEM & ODM projects.
• Flexible BMS matching with multiple JK-BMS models and display options per power design requirements.
• Surface finish options: anodizing, powder coating and silk-screen / UV printing for private-label appearance.
• Low-threshold MOQ supporting small sample trials and large-volume wholesale orders.
• Custom carton or plywood wooden packaging for cross-border shipping and brand-specific requirements.

Common Applications

• Off-grid residential solar backup and energy storage using the vertical enclosure.
• Household emergency power supply for blackouts and independent daily consumption.
• Bulk OEM projects for solar installers and energy storage equipment manufacturers.
• Garage, basement and small commercial off-grid PV energy storage installations.
• Branded storage kits for wholesalers to assemble and distribute global home solar products.

General manufacturing and appearance highlights
Manufacturing standard: weld-free construction with 1.5 mm anti-corrosion coated metal shell; full accessory configuration (cells excluded).
One-column large capacity: supports up to 15 kWh in a single vertical unit; equipped with heavy-duty casters for mobility and maintenance.
Sleek appearance & custom UV LOGO: modern streamlined design with optional color and UV logo printing to differentiate brands.
Heavy-duty casters: 4 casters per unit; each caster rated > 80 kg load for secure bearing performance and smooth movement.
Accessory kit & large touchscreen: matched BMS and 4.3" touchscreen included in kit; bulk orders support custom screen language.
Full custom service: appearance, structure, logo, screen language and exclusive packaging customization with engineering and production support.

Frequently Asked Questions (summary)

• Q: Does the kit include lithium cells? A: No; the supply excludes cells and includes matching accessories instead.
• Q: Can appearance and LOGO be customized? A: Yes; color, design and UV LOGO customization available.
• Q: What accessories are included? A: BMS options, 4.3" touchscreen, wiring harness, terminal connectors, busbars, air switch and casters (cells excluded).
• Q: Can the screen language be customized? A: Yes; large bulk orders support custom screen language.
• Q: What are structure and material details? A: Weld-free craft, 1.5 mm coated metal, phosphating and powder coating for corrosion and deformation resistance.

Notes on production & services

• Typical production flow: material selection, CAD modeling, prototype, CNC machining, surface treatment, thermal management integration, assembly and quality inspection.
• Accessory examples: JK-BMS, communication adapter board, 3.2"/4.3" displays, 200A brass terminals, copper busbars, heavy-load casters and full wiring harnesses.

Technical specifications

• Model name: Vertical Home Storage Battery Box
• Form factor: vertical floor-standing (single column)
• Recommended cell layout: 16S (48V) compatible with 280Ah / 314Ah cells
• Maximum supported capacity: up to 15 kWh (single unit)
• Cabinet material & thickness: anti-corrosion coated metal, 1.5 mm (weld-free construction)
• Standard accessories (cells excluded): JK-BMS options, 4.3" touchscreen, terminal connectors, copper cables, busbars, air switch, communication adapter board
• Casters: 4 heavy-duty movable casters; single caster > 80 kg rated load
• Manufacturing: CNC precision cutting, ready-made molds for high output (10,000+ sets/month), strict component inspection
• Customization: cabinet size, internal partition/wiring, surface treatments (anodize, powder coat, UV silk-screen), private LOGO UV printing
• Lead time for bulk OEM orders: sample/small-batch fast turnaround; formal bulk orders often within 7–10 working days (per production capability)
• Optional packaging: custom carton or plywood wooden packaging for cross-border shipping
