5-axis machining center KMC-EPG

universalgantrycutting

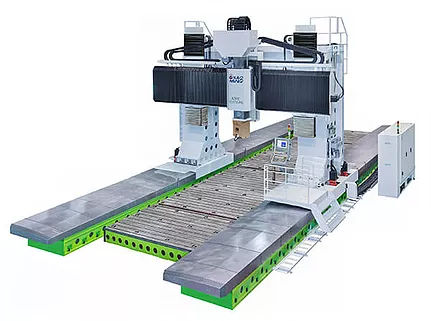

The new KMC-1337EPG 5-axis machining center features a fixed table, moving gantry with elevating crossbeam . The 2-axis head has the minimum cross section of 420mm(16.5in)x443mm(17.4in),and is capable of machining the narrow concave workpieces easily and deeply. High torque gear transmission spindle ram features maximum spindle output torque of 612Nm(450ft-lbf),maximum cutting torque of 2000Nm(1472ft-lbf) on B/C axis. Preloaded Rack and Pinion Drives are used on X-axis;20m/min (787ipm)rapid feed rate can be achieved under heavy load carrying. Fit for very long and large workpieces needed high torque machining; real 5-axis-simultaneous machining. Optimized and minimized machining ranges can be made under the mutual movement function between Z and W axes for varied workpieces. Roller packs for the movement of carriages are adopted to use on Y-axis insert-box ways to increase the feed and rigidity.
