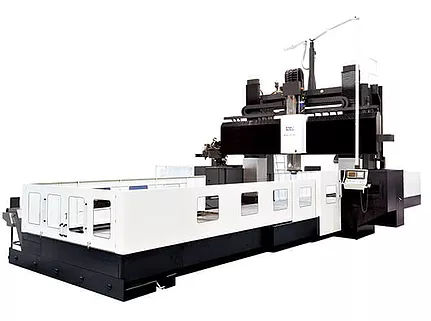

5-axis machining center KMC-EP series

4-axisuniversalheavy-duty

The new machine model is equipped with moveable crossbeam (W-axis). The 4-axis control provides the machine with 5-face (multi-face) machining capability. Optimized and minimized machining ranges can be made under the mutual movement function between Z (700mm) and W(1100mm) axes for varied workpieces. Roller-type recirculating bearing for the movement of carriages are used on X、Y-axis insert-boxways. A ram-type casted spindle head with a cross section of 400x400mm ensures high rigidity and stability under heavy-duty cutting. The spindle and motor are symmetrically put on the center line of the ram. 2-station AAC(Automatic Attachment Changer) is standard; V-head/H-head change and ATC(V/H) change. Automatic universal head, 30-degree angle head, extension head are optionally available for versatile applications.
