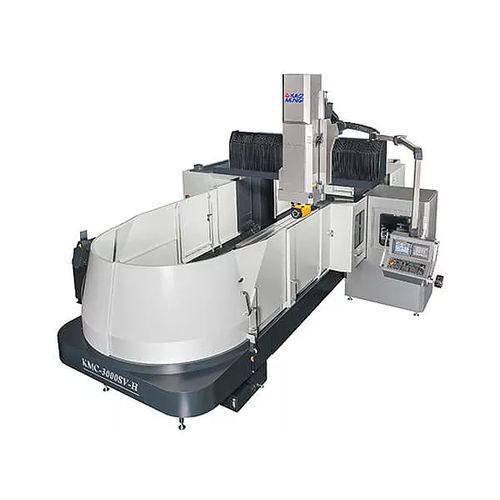

3-axis CNC machining center KMC-SV-H series

universaldouble-columnheavy-duty

The X, Y and Z axis are fully support by rigid box ways. All surfaces that make contact with the slideways are lined with Turcite-B to ensure long lasting and optimum rigidity during heavy cutting conditions. Combines the advantages of machining all 4 sides with angular attachment and machining the top face with vertical spindle head in one set-up. 2-station AAC magazine is located at the CRT side includes an automatic opening door, protecting the attachments from chips and coolant. Since the spindle is driven by a powerful 26 KW (35 HP) spindle motor and through two-speed transmission by gears, the maximum spindle torque is a powerful 780 Nm (575 ft-lb), allowing heavy-duty cutting. Tool can be easily unloaded/loaded from the horizontal spindle by operating a foot-switch.
