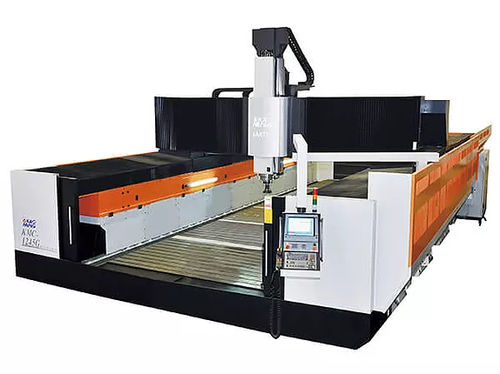

3-axis CNC machining center KMC-G series
universalbridgewith fixed table

3-axis CNC machining center
3-axis CNC machining center
Add to favorites
Compare this product


Characteristics

Number of axes
3-axis
Spindle orientation
universal
Structure
bridge, with fixed table
Associated functions
cutting
X travel

4,500 mm, 6,500 mm, 8,500 mm, 10,500 mm, 12,500 mm
(177.17 in, 255.91 in, 334.65 in, 413.39 in, 492.13 in)

Y travel

2,500 mm, 3,100 mm, 3,700 mm
(98.43 in, 122.05 in, 145.67 in)

Z travel

1,200 mm
(47.24 in)

Rotational speed

3,500 rpm, 6,000 rpm
(21,991 rad.min-1, 37,699 rad.min-1)

Power

22 kW, 26 kW
(29.91 hp, 35.35 hp)

Description

Gantry type construction with fixed table and traveling crossbeam. Rigid structure is especially idea for extra long and large workpiece machining. Fixed table provides maximum loading capacity of 10,000 kgf/m². Powerful 26 KW(35HP) spindle motor drives the spindle through a reducer. Maximum spindle speed is 6,000 rpm with maximum output torque of 670Nm(68 kg-m). Heavy cutting is also possible at low speed of 375 rpm.
