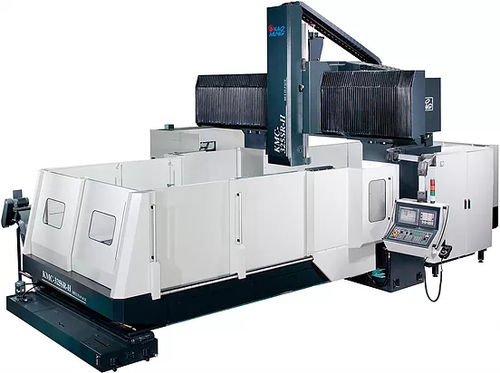

3-axis machining center KMC-SR seriesverticalcutting
Add to favorites
Compare this product
Characteristics
- Number of axes
- 3-axis
- Spindle orientation
- vertical
- Associated functions
- cutting
- X travel
Max.: 8,230 mm
(324.02 in)Min.: 2,230 mm
(87.8 in)- Y travel
Max.: 2,700 mm
(106.3 in)Min.: 1,700 mm
(66.93 in)- Z travel
1,100 mm
(43.31 in)- Rotational speed
4,000 rpm
(25,133 rad.min-1)- Power
22 kW, 26 kW
(29.91 hp, 35.35 hp)
Description
The X, Y and Z axis are fully support by rigid box ways.
Two gear ranges, helical and spur gears support the spindle transmission system for machining large cavities at low RPM.
All surfaces that make contact with the slideways are lined with Turcite-B to ensure long lasting and optimum rigidity during heavy cutting conditions.
3 axes have larger travel range；extraordinarily Z-axis stroke is 1100 mm.
