Analysis software CAPTURE

calibrationfor testcontrol

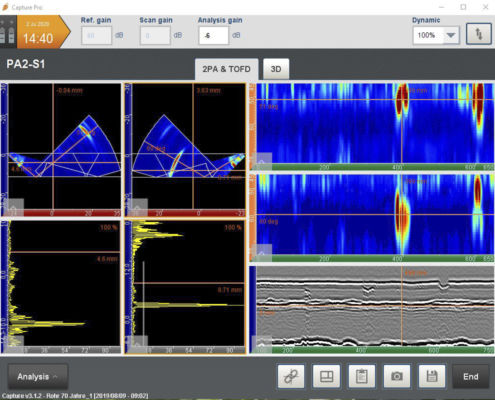

The software “Capture” is used for parameterization and control of the mobile phased array flaw detectors GEKKO and MANTIS as well as for analysis of the acquired data. The PC version provides device-independent creation of data sets and the analysis of existing scan data. Capture supports conventional ultrasonic testing (UT), phased array UT (PAUT), time-of-flight diffraction (TOFD), the total focusing method (TFM) and the adaptive total focusing method (ATFM). Key Facts • Numerous wizards for step-by-step application guidance • Comprehensive probe, wedge and scanner libraries • Fast and intuitive calibration wizards • Integrated focal-law calculator for probe configurations • Customizable test report • Complete software for PAUT/TFM/TOFD tests • Extensive analysis tools
