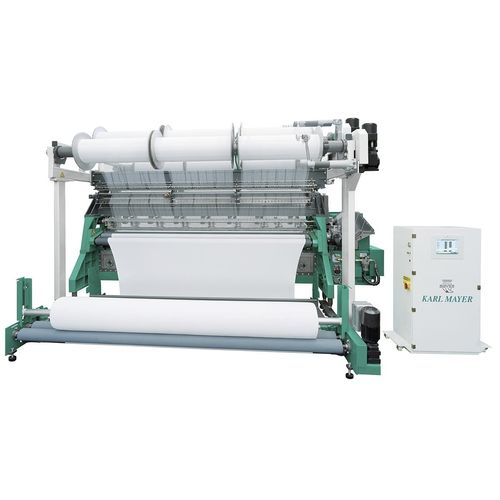

Raschel warp knitting machine R series

multi-barfor high-stretch textiles

High-performance elastomeric Raschel machine Benefits High performance with varied products Highest operational reliability Long service life Maximum efficiency to meet your demand Technical Details Working width / Gauge 170" (172"*) / E28, E32, E36 190" (192"*) / E28, E32, E36 258" (260"*) / E28, E32 *(working width extension) Bars / knitting elements Individual needle bar and tongue bar, stitch comb bar, knockover comb bar, four ground guide bars Warp beam support Three warp beam positions for sectional beams of 32" flange diameter Optional: Four warp beam positions for sectional beams of 32-inch flange diameter Fabric take-up Electronically regulated fabric take-up, driven by geared motor, consisting of four rollers, with BLUE-G 310 coating and polish Applications Embroidery grounds and tulle Intimate Apparel RSE 4 Benefits Perfect combination of productivity and article spectrum Highest flexibility in 4­bar articles Operation of low­-gauge applications possible Heavyweight articles possible Technical Details Bars / knitting elements Individual needle bar and tongue bar, stitch comb bar, knockover comb bar, four ground guide bars Warp beam support Three warp beam positions for sectional beams of 32-inch flange diameter Optional: Four warp beam positions for sectional beams of 21-inch flange diameter Optional: Four warp beam positions for sectional beams of 30-inch flange diameter Fabric take-up Electronically regulated fabric take-up, driven by geared motor, consisting of four rollers, with BLUE-G310 coating and polish Applications Embroidery grounds and tulle Intimate Apparel Outerwear Activewear Mosquito nets
