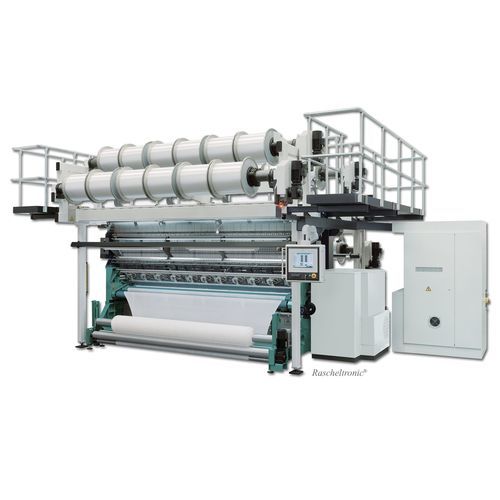

Raschel warp knitting machine RJ series

high-speedjacquard

High-performance RASCHELTRONIC® machine for elastic and rigid fabrics Benefits Wide range of patterns and high flexibility Best-in-class production speed Electronic guide bar control (EL) GB3, GB4 able to make Koeper (Twill) stitch Extreme reliability and low maintenance Technical Details Working width 130" Gauge E28, E32 Yarn let-off device Five electronically controlled yarn let-off gears for ground guide bars; six position optional Pattern drive EL Electronic guide bar control on Jacquard bars and ground guide bars Fabric take-up Electronically regulated fabric take-up driven by geared motor and consisting of four rollers Applications Intimate Apparel Activewear Outerwear RJ 4/2 EL High-performance Jacquard Raschel machine for the production of engineered sportswear with functional elastic zones and lingerie with 4-way-stretch. Benefits Wide range of patterns and lapping combinations due to 2 Jacquard bars 4-Way-Stretch - in combination with holes and mesh effects Integrated Functional Zones - exactly on spot, due to needle individual elastan lapping in Jacquard bar JB1 and JB2, JB3 and JB4 able to make counter lapping Electronic guide bar control (EL) Technical Details Working Width 130" Gauge E 28, E 32 Applications Revolution of Bodymapping! High-performance sports wear is made of different functional zones without disruptive seams: strong fabric zones for support high elastic zones for free movement and mesh structures where breathability is needed. 4-way-stretch by using bare elastane. Light sportswear or lingerie with 4-way-stretch (bare elastane), 3D effects, thick-thin effects or matt-shiny effects for highest customer expectations.
