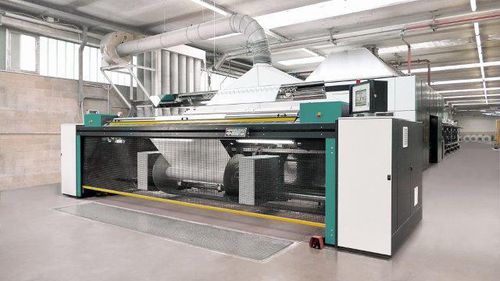

Yarn sizing machine PROSIZE (PSZ)

An innovative breakthrough in sizing Benefits Size saving – the turbulent size application and the sponge effect allow reduction of the size add-on up to 10% Minimum yarn stretch – the short wet-application zone with 100% bonded yarn transport and SoftDry system ensure lowest yarn elongation in the sizing process High weaving efficiency – top weaving performance through absolute size liquor homogeneity, low hairiness, less dust and no stop marks Technical Details Back beam diameter 800 / 1,000 / 1,250 mm Working width 1,800 - 2,800 mm Speed 160 m/min 200 m/min (option) Working width 1,800 - 2,400 mm (HSB) 1,800 - 3,200 mm (VSB) Modular cylinder dryer 4 - 24 drying cylinders Loom beam diameter 1,016 / 1,100 / 1,250 mm Loom beam width 2,100 - 4,000 mm Winding tension 6,000 N 8,000 - 12,000 N (option) Machine Features SoftDry Technology This technology is driven by single-drive motor system for the minimum yarn stretch and equipped by a fully self-adjustable algorithm for yarn motion control which allows a perfect yarn guiding over the whole drying phase. This assures an equal distribution of the yarn tension between cylinders, avoiding friction. Unique size box concept Lowest use of size add-on and highest cover factor, reduced maintenance, all bearings are outside of the size liquor, bonded yarn guidance, easiest accessibility to all core components of the size box. Lowest production costs Short and controlled wet application zone with an efficient filtering system assure size saving up to 10% and no over-sized warps even after long down times. Less cross ends and lapper formation. Production speed up to 200 m/min.
