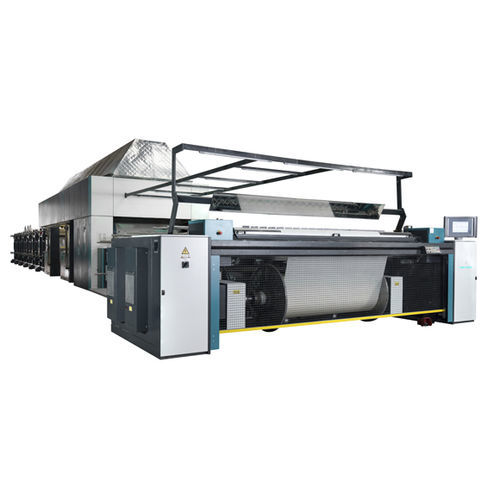

Yarn sizing machine ISOSIZE® (ISZ)

Sizing machine for staple fibres Benefits Classic size box concept – triple dip and double nip Lowest maintenance and easy handling KARL MAYER Process Control System – to guarantee best quality and reproducibility Technical Details Back beam diameter 800 / 1,000 / 1,250 mm Working width 1,800 - 2,400 mm Modular cylinder drier 4 - 20 drying cylinders Speed 125 m/min 150 m/min (option) Winding tension 6,000 N 12,000 N (option) Loom beam width 2,100 - 4,000 mm Loom beam diameter 1,016 / 1,100 / 1,250 mm Machine Features Size box The size boxes have a linear design of the rollers, and the yarn is always guided and clamped in the wet zone. There is a lowering system of the size tank and large filters, which are easy to inspect and clean. The sizing machine in general requires low maintenance which makes the handling very easy. Reproducibility of production This machine has a constant let-off tension beam creel and a dryer frame for a geometric and guidance warp sheet. The KAMCOS® system assures reproducibility of production and there is an easy and intuitive software. Applications Shirt fabrics Mattresses Terry towelling and cleaning textiles Suit fabrics Bandages
