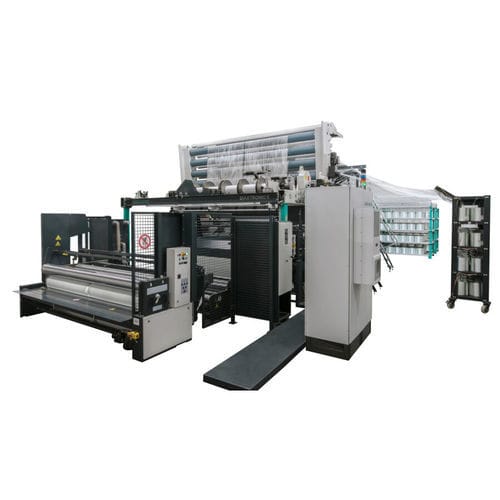

Multi-bar warp knitting machine BIAXTRONIC® II

high-speedfor biaxial textiles

High-performance warp-knitting machine for the production of biaxial non-crimp fabrics (NCF) Benefits High productivity High efficiency High flexibility Technical Details Working width: 102"–108" Gauges: E 5, E 6, E 7, E 10, E 12, E 14 – other gauges on request Weft-insertion system: Course-oriented system with yarn laying carriage with 24 ends Non course-oriented system with yarn laying carriage with up to 96 ends No. of warp beams / guide bars: One or two guide bars – max. 32" flange diameter for warp beams One bar for filler threads – rigid or shoggable Filler thread feeding: Two or four-roller system Pattern drive: Pattern disc Take-up device: Four-roller system Batching device: Surface winding system with pressure roller Option: Batch ejector Batching system with surface or center winding Optional: Substrate fabric feeding device, chopping device, weft yarn monitoring, container suction device with trolley Applications Geotech Fibre-reinforced composites Pipe repair
