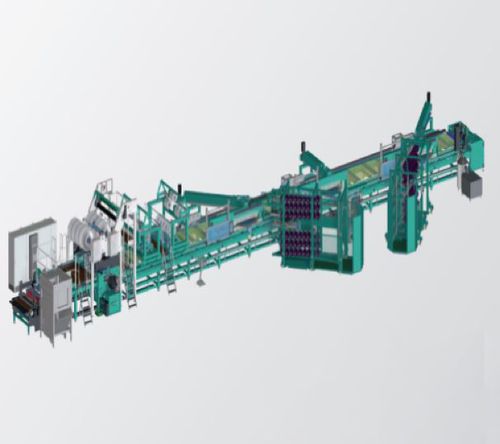

High-speed warp knitting machine COP MAX 5

for multiaxial textiles

High-speed warp knitting machine for producing multiaxial textiles from carbon-fibre tapes or rovings Benefits High productivity High flexibility High efficiency Modular machine concept Customised configuration Technical Details Working width: 50", 101", 130" Working width reduction: 101", 130" up to 80" Gauges: E 5, E 6, E 7, E 10, E 12, E 14 Weft-insertion system: Adjustable weft-insertion system between +20° and –20° No. of warp beams / guide bars: One or two guide bars – max. 40" beam diameter for warp beams One bar for filler threads – rigid or moveable Filler thread feeding: Four-roller system, A-frame or I-frame execution or tape feeding Pattern drive: Pattern disc, electronic guide bar drives optional Take-up device: Three-roller take-up system Batching device: Batching system with centre winding, surface winding or combination of centre and surface winding Optional: Substrate fabric unwinding device, vario stitch, powder scattering Applications Mobiltech Medtech Protech Rail Vehicles Automotive Exterior Aircraft
