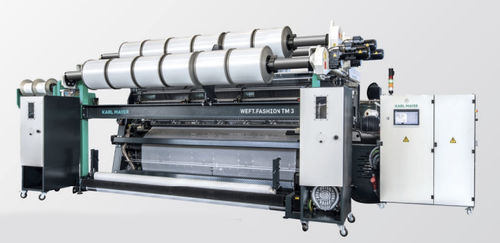

Tricot warp knitting machine WEFT.FASHION TM 33 guide barswith weft insertion
Add to favorites
Compare this product
Characteristics
- Type
- tricot
- Other characteristics
- 3 guide bars, with weft insertion
Description
WARP-KNITTING MACHINE WITH COURSE-ORIENTED WEFT-INSERTION FOR PRODUCTION OF MEDIUM-WEIGHT HOME TEXTILES
Benefits
Manufacturing of new home textiles
Production benefits of warp-knitting technology
Maximum cost-performance ratio
High operating reliability and safety
Technical Details
Working width:
132" (up to 45" working width reduction)
Gauge:
E 24
Bars / knitting elements:
Individual needle bar,
tongue bar,
compound sinker bar,
3 ground guide bars (GB 1 and GB 3 stitch-forming)
weft insertion bar
Weft-insertion system:
Yarn-laying carriage with 24 ends, combing device for operating fancy yarns, yarn provided from creel, tension controlled by pre-winders
Warp beam support:
3 x 32"
Batching device:
No. 64
Applications
Outerwear
Embroidery grounds and tulle
Curtains
Upholstery fabrics and velour
