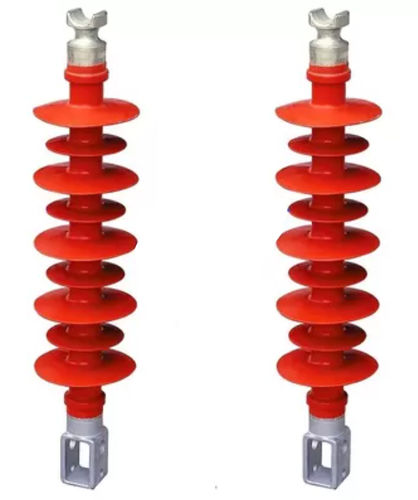

Line post insulator FS-35/10-MJ-630

compositepolymersilicone rubber

1, 35kV Cross-arm Insulator are widely used in power transmission lines and substations. 2, Dead end fittings are up to the requirements from the clients, usually we use different flanges for post insulators with forged steel or cast steel. The dimensions and coupling size can be exactly according to the specification requirements from the utilities. 3, The silicon rubber color of the insulators are also up to the requirements from the clients and all the silicon rubber materials past 5000 hours aging test silicon content test and hydrophobicity test. 4, ECR core rods are used in all the insulators, so we can guarantee a very good mechanical strength and anti-acid pollution performance for the insulators. 5, All our insulators were type tested and design tested in accordance with IEC61952, maximum RIV is 100µV when tested at 1MHz and10% over nominal line ground voltage for indicated system voltage. 6, All the Cross-arm Insulators with the voltage lower than 110kV are not supposed to use corona ring. All the Cross-arm Insulators with the voltage equal to or higher than 110kV but lower than 220kV are supposed to use one corona ring at the line end. All the Cross-arm Insulators with the voltage equal to or higher than 220kV are supposed to use two corona rings at both sides. 1, Usually used in 35kV substations 2, Usually used in 35kV Electric Power Lines 1. Good performance of hydrophobility 2. Anti-pollution 3. High mechanical strength 4. Small volume 5. Light weight 6. Can replace the porcelain ones because of the good anti pollution, convenient installation and free from maintainance performance.
