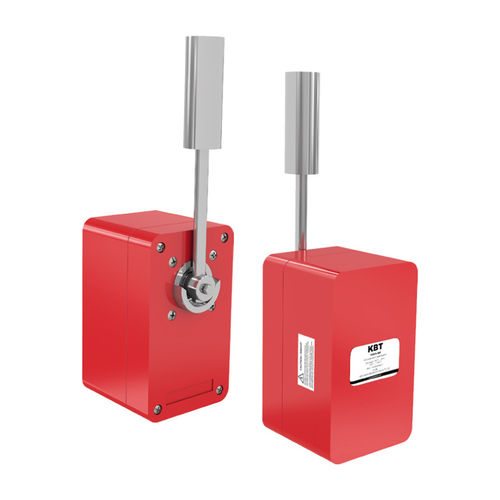

Conveyor limit switch TPR55-BM

corrosion-resistantIP65safety

► BMC Composite Enclosure ► 2NO / 2NC Contact Structure ► CE, EAC Standards ► 3 Years Replacement Warranty It is designe to alert and turn off the conveyor system in case of misalignment of the conveyorl belt. Its resistance to heavy conditions makes it reliable in the long term and suitable for most industrial applications. . Enclosure structure is resistant to corrosion by being covered with BMC composite. Shaft and lever Shaft and lever mechanisms are made of stainless steel. The handle mechanism has a stainless steel cylindrical structure and works with two bearings inside. NSR55-BM Arm belt slide switches (limit switches) are mounted on both sides of the conveyor belt to be connected to the chassis. The belt slding switch, also called the limit switch, is desgined to prevent damage to the belts and equipment due to the misalignment of the conveyor belt. Limit switches and specific limit switches save time by reducing system downtime and maintenance costs. The cylinder arm of the switch is placed approximately 15 cm from the normal belt position. When the belt starts to slide, it comes into contact with the roller arm. As a result of the application of more force on the band arm, the cylinder arm can move from its current position and can be adjusted at two different angles up to the maximum movement angle at 70 °. All products and limit switch are manufactured in accordance with CE standards and meet EAC standards for the Russian market. TPR55-BM series products do not require any maintenance. Please check manual file for product usage.
