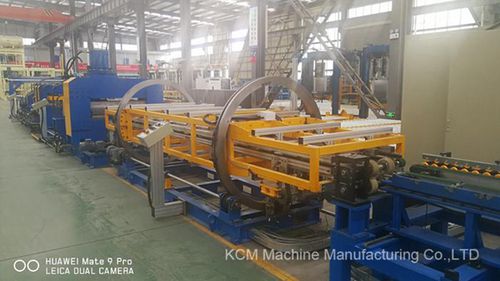

Metal tube roll forming line
punchingautomatic

metal tube roll forming line
metal tube roll forming line
metal tube roll forming line
metal tube roll forming line
metal tube roll forming line
metal tube roll forming line
metal tube roll forming line
Add to favorites
Compare this product


Characteristics

Finished product
for metal tubes
Other characteristics
punching, automatic

Description

Machine for Chest Freezer Outer-Shell O-Shape Sheet Metal Forming Line Due to outer O- shell forming line mainly composed of Automatic Loading Machine, Punching Machine--1, punching machine--2, 180 Degree Rotation Turn Over, Roller Forming Machine, Punching for Compressor Window machine, Flanging for Compressor Window machine, Both Two End Side Combine U bending machine and Final O Bending Station, pneumatic system, Hydraulic system, electricity control system and etc. 1. Production line Dimensions (Reference): About L38000*W3500*H2200; 2. Height for work piece: from ground 900mm; 3. Amount of Working Stations: 8; 4. Circle Time: Around 35 seconds / set; 5. Process is as follows: Automatic loading to punching1 and punching2, Then 180°turn over by Rotation Device, Next by bottom flange roller forming, Then Punching for compressor window and another one flanging for compressor window, Finally for 6. Combine U to O-shape bending machine 7. Sheet Material: Cold roller sheet 8. Adjustment scope for the product size: L*W*D=(800-1500)*(624)*(750-850) 9. Electric supply: AC380V, 50HZ, the total power of about 75KW; 10. Gas source: 1 / 2 "(0.5-0.65Mpa); 11. Water supply: Industrial water ( 25 litres/minute)
