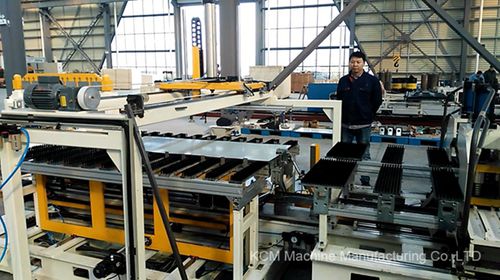

Panel roll forming line

Refrigerator Back Panel Roller Forming Line Main technical performance parameters: 1. Outline dimenssion of line(reference only): 28500*4200*1850(L*W*H) 2. Working height of line: 900 mm distance to the ground 3. Dimenssions of finished products: 680-1980(L), 420-620(W), 0.3-0.5(H) 4. Applied raw material: Zink-coated steel sheet 5. Circling time for production: 30s 6. Water, electrical power and air supplying: Industry tap wate, about 26kVA(380v 50HZ), 0.5--0.65Mpa Refrigerator producing equipment, detailed as follows: 1. Refrigerator metal parts processing equipments: Refrigerator door sheet bending forming machine; Fridge side panel roller forming machine line; Fridge back board roller forming machine line; 2. Foaming euipments: Refrigerator door body 7 jigs revolving foaming line. Fridge cabinet fixtures linear layout foaming line. Foaming line for door and cabinet with trolleys circling moving on the ground railway. Door foaming machine moving by flat circling jigs. 3. Thermo forming machine for inner liner Single work station thermo forming machine Multi-stations thermo forming machine for refrigerator door and cabinet inner liner Double station thermoforming machine. 4. Refrigerator production line including all kinds conveyor like roller, flank and chain etc, mainly including following parts: Refrigerator preassembling line, assembling line, compressor weilding line, injection line, cooling Performance inspection line and packaging line etc, in addition, the layout can be designed accoring to customer's requirement. 5. Thermo forming moulds and foaming jigs & fixtures. Thermo forming moulds for door and cabient.
