Automatic forming machine
vacuumvacuummulti-station

automatic forming machine
automatic forming machine
automatic forming machine
automatic forming machine
Add to favorites
Compare this product


Characteristics

Operating mode
automatic, vacuum
Other characteristics
multi-station, vacuum

Description

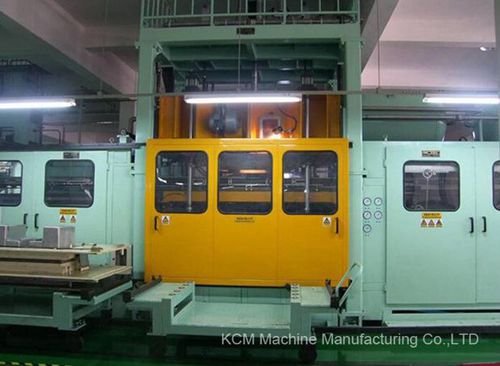

Multi-station Cabinet Vacuum Forming Machine for Refrigerator Product Summary & Main Parameters: Multi-station Vacuum Forming Machine is mainly used on automatic vacuum absorption forming of refrigerator cabinet, which consists of loading, pre-heating, heating, forming, trimming and unloading parts together. According to the conveyor methods, this kind of machine can be divided by chain type and clamp type. on the contrary, it is also distinguished by 4 stations and 5 stations if it has trimming device or not. Besides, by the difference in forming methods it has 2 sorts of absorption bubbling & bubbling. The device carries intelligent thermostat, servo motor driver, compressor forming, low temperature freezing and so on, which has features of highly energy-saving and highly automation, etc. General Technical Parameters (Only for reference) Maximum Forming Square 2000mm*1000mm Maximum Forming Depth 650mm Heating Power ~303Kw Total Electrical Supply ~460Kw (380V, 50Hz) Total Air Supply ~3m³/min (0.5Mpa~0.65Mpa) Freezer Water Supply ~20m³/h (5ºC~15ºC) Producing Cycle ≤36s/pcs Material for Forming ABS, HIPS or PS Material Thickness 2.5mm~6.0mm
