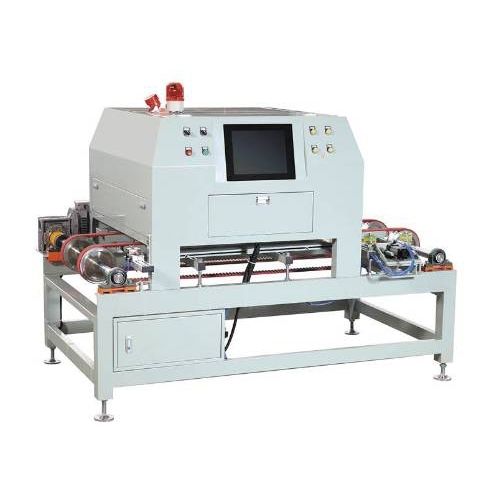

Machine vision system composed of 4 industrial cameras, visual light source, image collecting & processing system detects the dimensional detects of edges’ and diagonal error of the tile, and sorts the tile according to unparallel, diamond shape and corner broken, automatically marks the grade, and produces a quality statistical report.
