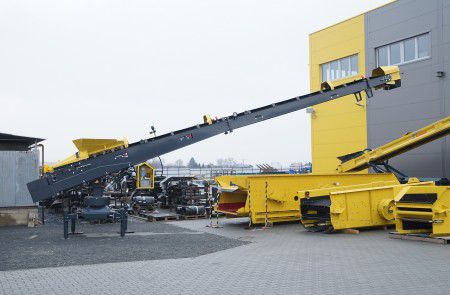

Wire stacker Se1

Performance highlights Automatic swiveling via ultrasonic sensor to create radial stockpile 75% cost saving capacity compared to a loading shovel Very good stockpiling capabilities Main conveyor 650 mm (2'2") wide, 10.500 mm (34’5") long Feed capacity up to 280 tonnes an hour Available in electric plug-in version Stockpile capacity from 450 to 2.900 ton Discharge height from 5,3 meter (17'5") to 6,35 meter (20'10") Specifications Transport dimensions Working dimensions Weight - 5,45 t (6 sT) - 5,45 t (6 sT) Length - 12.000 mm (39'4") - 12.800 mm (41'11") Height - 2.350 mm (7'9") - 6.350 mm (20'10") Width - 1.280 mm (4'2") - 1.900 mm (6'3")
