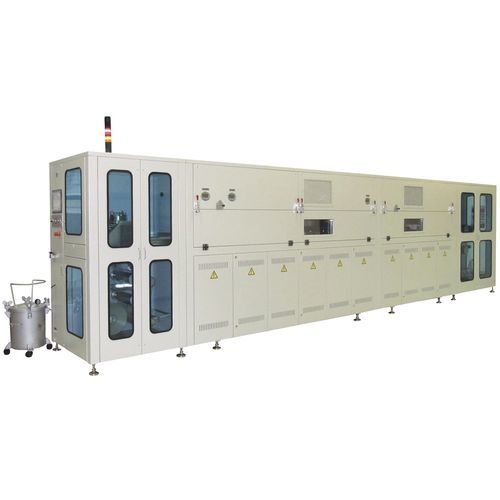

Continuous casting machine H series

for filmlaboratory

• Suitable for green tape thicknesses from 5 to 500 microns (0.2 to 20 mils) • Automatic high accuracy gap setting control • Different models avaliable • The CAM- H series of tape casters are our most advanced tape casting machines suitable for highest production demands. • Advanced drying regimes makes them very suitable for thick tape production. • Numerous temperature and air flow sensors are installed for process control. • The automated continuous slurry dosage flows through a slotted die system with +/-10 micrometer (0.4 mils) slurry level height control on the casting box. • Fully automatic casting gap control, with auto zero calibration. • The process can be continuos monitored on a touch screen or an external PC. • Preset menus can be use to quickly start a new casting batch. A series of available options customize the casters to meet particular requirements, these includes (but are not limited to): • tape edge cutting different drying zones • dying zones extensions up to 20 m (66 ft) in 2 m (6.6 ft) steps possible • safety package for ex proof casing process • data link for external process monitoring • laser tape thickness measurements with tape marking • slurry filter cartridge
