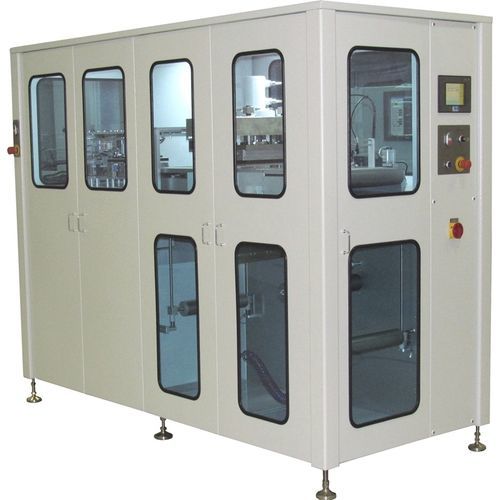

Blade cutting machine SC series

filmsheetroller

The sheets are suitable to be used on our Tape Punching Machine, Printing and Stacking machines. • Options: • Suitable for freestanding or Mylar based tapes • Trims sheet edges • Punch registration holes • Sorts blanked sheets to a magazine • Sorts blanked sheets based on thickness deviation • Elimination electrostatic electricity • Optical inspection software - Sorting sheets according to their quality • Custom design The SC-series blanker blanks green ceramic sheets from a roll of green tape. The sheets are used on our punching, printing and stacking machines, where sheets, instead of roll of green tapes are loaded. Basic operational steps are: 1) A roll of green tape is loaded in a un-winder, 2) The left and right edges of the ceramic tape are cut to the desired width, 3) Registration holes are (optionally) punched on the sheet's edges, 4) The sheet is cut to the desired length, and, 5) Individual sheets are collected in a magazine. An antistatic device prevents electrostatic charge build up. Different machine configurations are possible to meet specific requirements.
