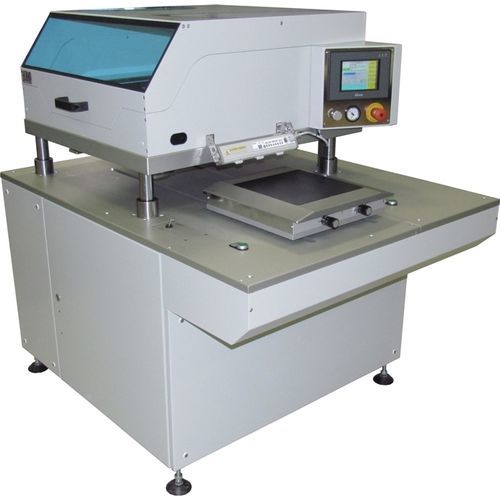

Manual screen printer P series

for electronicspneumaticprogrammable

Manual Screen Printing Printers "Screen printing printers designed for diverse precise screen printing applications in electronic component production such as: LTCC, MLCC, Inductor, Diverse printing circuits, Hybrids, etc." Advanced Model • A fully featured with wide range of available options • Servo motor driven squeegee assembly • Servo motor driven printing table • Stepper motor adjustable printing table (x, y, theta) • Joystick printing table control for manual operations • Stepper motor automatic/programmable snap off adjustment • Pneumatically screen fixing • Automatic printing table alignment by PC based vision system • All printing parameters programmable via touch screen • PLC control ( Call/save 99 Recipes) Options: • Custom designed printing table for fixing different printing circuits or carrier blocks. • Automatic paste supply. • Stencil tensioning frame and fixing • Different squeegee types, diamond type, double squeegee. • Optionally: elimination elektrostatic electricity Standard Model • For more demanding applications • Servo Motor driven squeegee assembly • Pneumatically driven vacuum printing table with shock absorbers. • Screen X,Y, theta adjustment by micrometer screws • Automatic adjustable snap off distance • Two USB camera, cross line software • PLC control ( Call/save 99 recipes) • PC+touch screen for settings and alignment Options: • Custom designed printing table for fixing different printing circuits or carrier blocks. • Intermediate frame with pneumatic screen fixing. • Stencil tensioning frame and fixing • Automatic paste supply. • Different squeegee types, diamond type, double squeegee.
