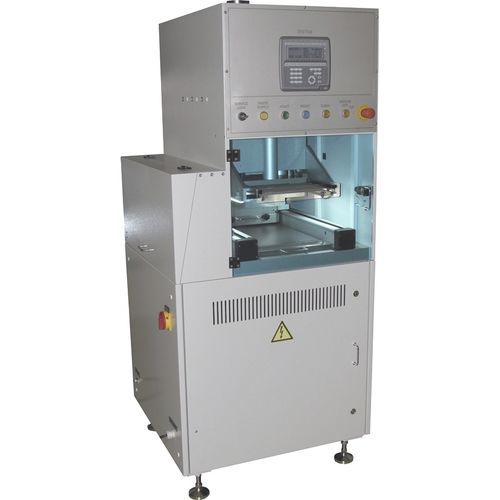

Vertical hardening machine DM-6

"For end termination of different electronic chip components previously inserted in to a carrier plate" • DM6 dipping machine with high dipping force makes possible to level the chips during the dipping process perfectly. • Unique cleaning features. • Fully programmable dipping conditions ensures accurate and cosmetically excellent termination. • Simple programming, more than 50 dipping programs can be stored. • Truth chip leveling mode ensures uniform dipping height. • High speed, high accuracy servo motors positioning. • Easy cleaning features. Technical specifications DM 6 Chip size from 0603 forward Carrier Plate Dimension 7” x 11” (177,8mm x 279,4mm) Dimensions L x W x H: 1,8 m ( 70 inch) x 0,8 m ( 31 inch) x 0,8 m ( 31 inch) Electricity 200-240 V; 50/60Hz; 20A fuse, Power: app. 2 kW according to the customer requirements Compressed air 0,6 MPa, 150 L/min., tube dia. 10 mm Vacuum -0.08 MPa (0.02 MPa absolute), 100 L/min., tube dia. 12 mm Exhaust 30 m3/min., tube dia. 100 mm Options Modification for tape system carrier plates Automatic ink supply Vacuum pump
