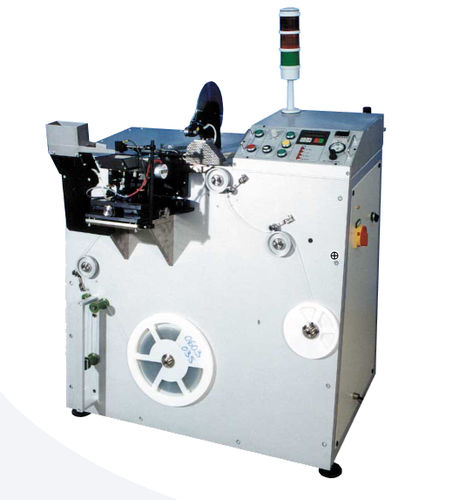

Taping machine CTM 12

"Chip tester CS-10 for Automatic Testing and Sorting of Chip Components" • Chips are tested individually in the rotary carrier plate with a sliding contact and sorted according to preset parameters. • Chips are binned into 10 bins and 1 bin for untested plus out of range chips. • Chips are transported by the rotary test plate to the test position where they are probed. • Depending on the options used, the machine can have up to 5 measuring probes. • The automatic chips feeding is provided by the bulk feeder. • It is also possible to preset number of chips in a bin. • Fewer moving parts of the machine ensure Max. chip size from 0603 forward Min. chip size 7” x 11” (177,8mm x 279,4mm) Dimensions L x W x H: 1,8 m ( 70 inch) x 0,8 m ( 31 inch) x 0,8 m ( 31 inch) Power requirement Electricity 220 V, 50 Hz Compressed air : 6 bars, 100 l/min Vacuum : 0,6 bar, 200 l/min "High productive and reliable design, designed for taping chip components of all sizes" • Taping chip components of all sizes, which can be taped in 8 and 12 mm tape width like 0603, 0805, 1206 , 1210, 2212, 2220 according to the IEC specification No 286 – 3. • Feeding system ensures loading of 20 components simultaneously in one cycle. • Incorporated control sensors serve for the self-diagnostic of the machine, like 100 % control of chip presence in tape, and control of carrier and cover tape. • Tapes components from 0603 up to 2220 • Quick set up time for different component dimension • Reliable, thanks simple design • Efficient, inserts 20 components to the tape at once • Uses either 8 mm or 12 mm plastic carrier tape
